Metrics UI in Elastic APM

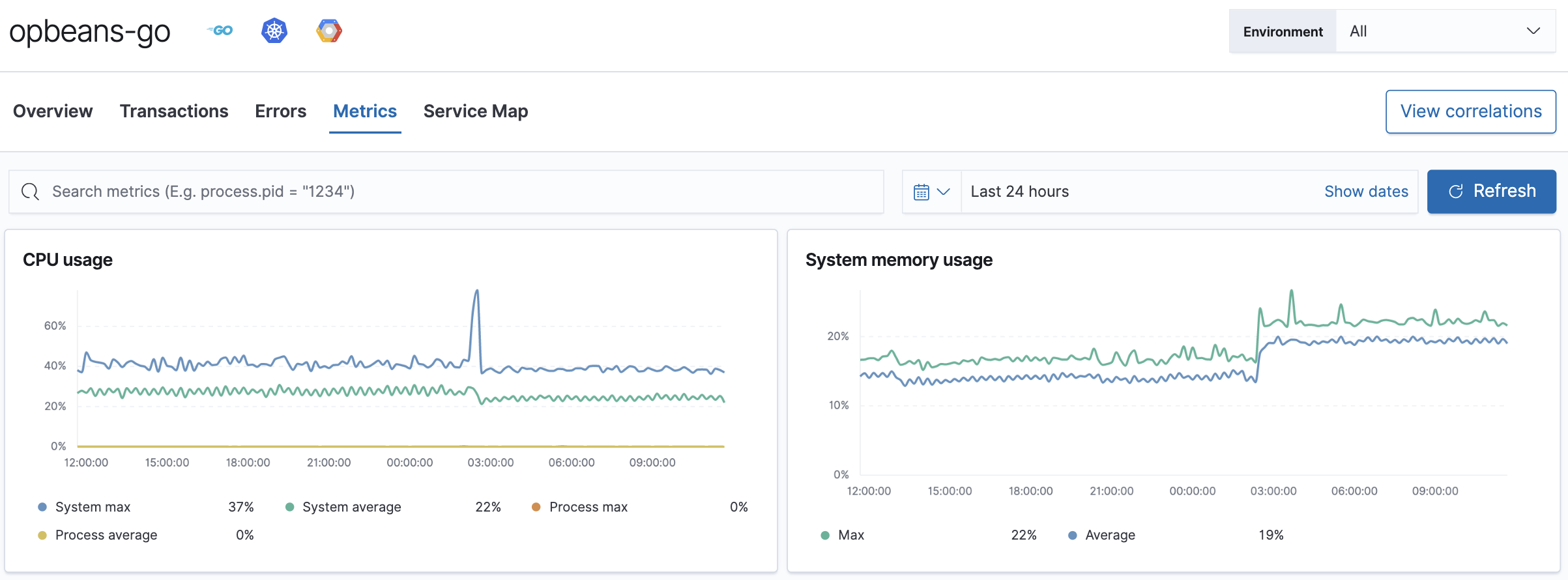

The Metrics overview provides APM agent-specific metrics, which lets you perform more in-depth root cause analysis investigations within the Applications UI.
If you’re experiencing a problem with your service, you can use this page to attempt to find the underlying cause. For example, you might be able to correlate a high number of errors with a long transaction duration, high CPU usage, or a memory leak.
Dashboard resolution is version-aware: the Metrics tab uses the service’s runtime version — alongside data format, SDK name, and language — to load the correct dashboard. For example, .NET 9 and later services use a built-in runtime metrics dashboard, while .NET 8 and earlier services use a legacy contrib metrics dashboard. This ensures you always see the metrics that match your service’s runtime version.

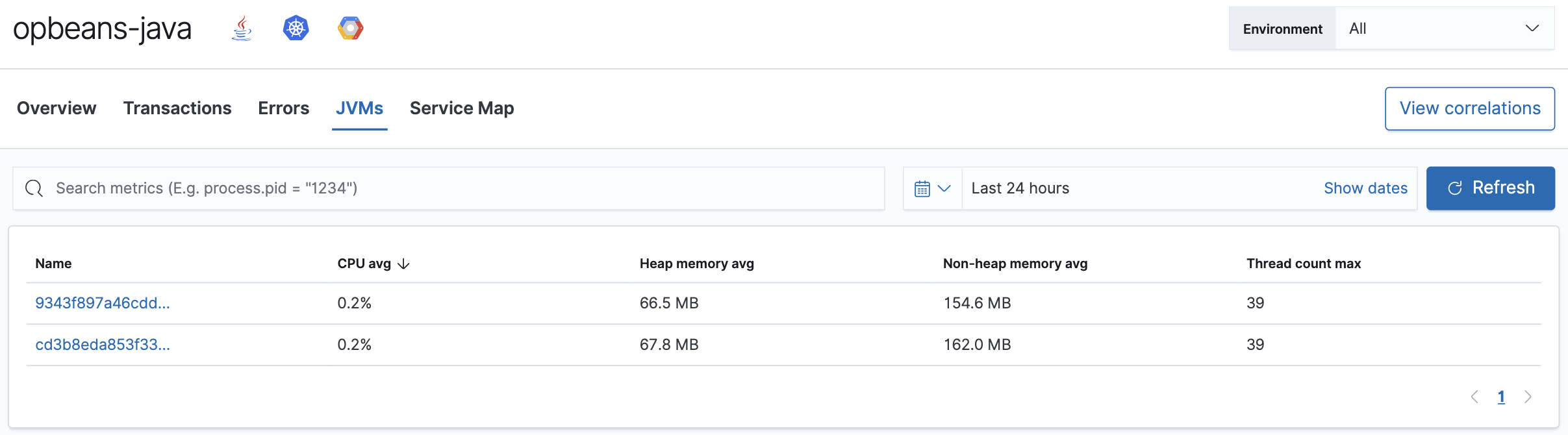

If you’re using the Java APM agent, you can view metrics for each JVM.

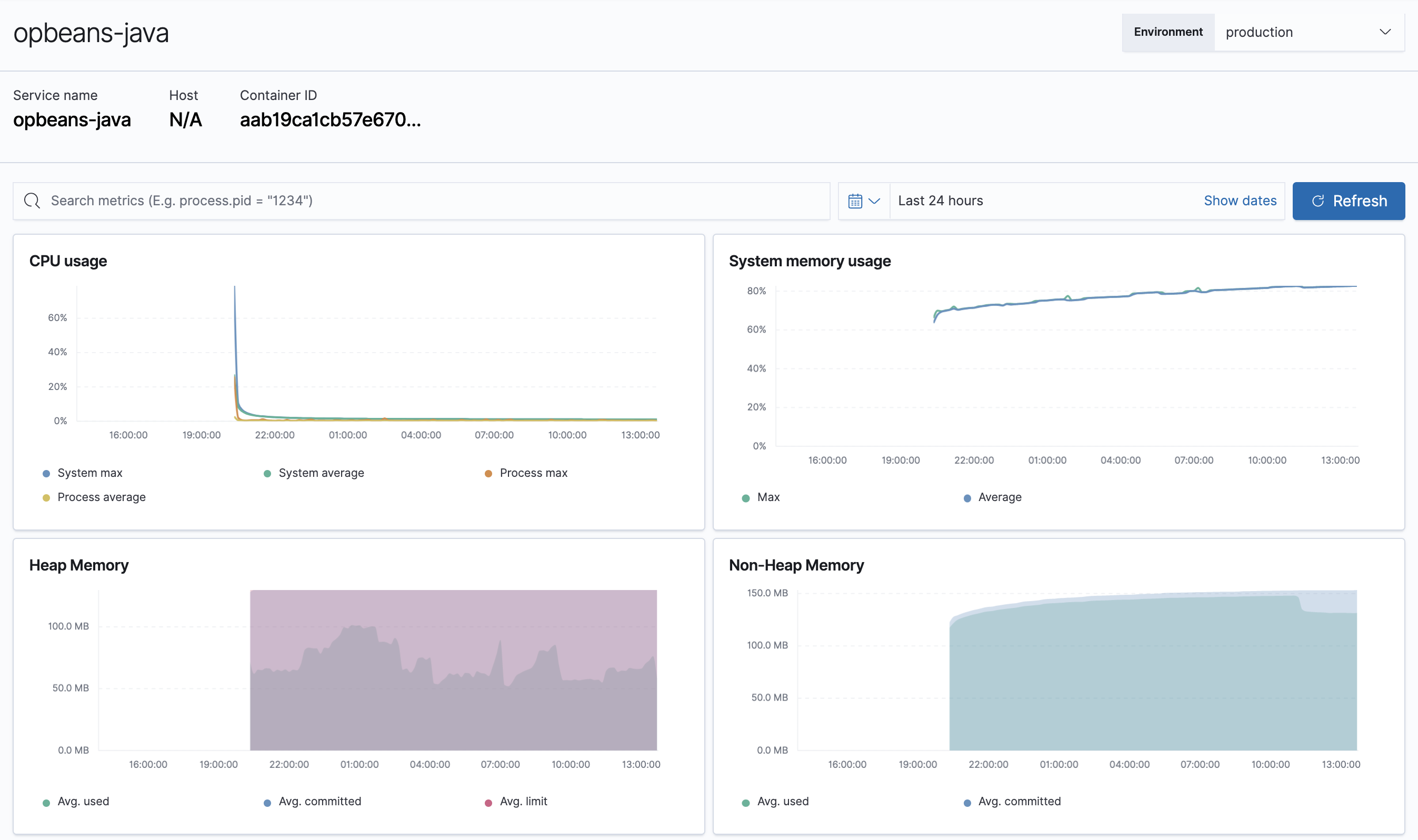

Breaking down metrics by JVM makes it much easier to analyze the provided metrics: CPU usage, memory usage, heap or non-heap memory, thread count, garbage collection rate, and garbage collection time spent per minute.
