Microsoft Office 365 Metrics Integration
Version 0.6.6 beta:[] (View all)
Compatible Kibana version(s) 8.16.0 or higher
9.0.0 or higher
Supported Serverless project types
What's this?		 Security
Observability
Subscription level
What's this?		 Basic
Level of support
What's this?		 Elastic

This integration uses the Microsoft Graph API to collect essential metrics from Microsoft Office 365, offering detailed insights into user activity, application usage, and overall system performance.

Following Microsoft 365 Graph Reports can be collected by Microsoft Office 365 Metrics integration.

Report API Data-stream Name Aggregation Level
Microsoft 365 Active Users Service User Counts reportRoot: getOffice365ServicesUserCounts Microsoft 365 Active Users metrics Period-based
Microsoft 365 Groups Activity Group Detail reportRoot: getOffice365GroupsActivityDetail Microsoft 365 Groups Activity Group Detail Day-based
OneDrive Usage Account Detail reportRoot: getOneDriveUsageAccountDetail Microsoft 365 OneDrive Usage Account Detail Day-based
OneDrive Usage Account Counts reportRoot: getOneDriveUsageAccountCounts Microsoft 365 One Drive Usage metrics Period-based
OneDrive Usage File Counts reportRoot: getOneDriveUsageFileCounts Microsoft 365 One Drive Usage metrics Period-based
OneDrive Usage Storage reportRoot: getOneDriveUsageStorage Microsoft 365 One Drive Usage metrics Period-based
Outlook Activity Counts reportRoot: getEmailActivityCounts Microsoft 365 Outlook Activity metrics Period-based
Outlook App Usage Version Counts reportRoot: getEmailAppUsageVersionsUserCounts Microsoft 365 Outlook App Usage Version Counts metrics Period-based
Outlook Mailbox Usage Quota Status Mailbox Counts reportRoot: getMailboxUsageQuotaStatusMailboxCounts Microsoft 365 mailbox usage quota status metrics Period-based
Outlook Mailbox Usage Detail reportRoot: getMailboxUsageDetail Microsoft 365 mailbox usage detail metrics Period-based
SharePoint Site Usage Storage reportRoot: getSharePointSiteUsageStorage Microsoft 365 Sharepoint Site Usage metrics Period-based
SharePoint Site Usage Detail reportRoot: getSharePointSiteUsageDetail Microsoft 365 Sharepoint Site Usage metrics Period-based
Teams Device Usage User Counts reportRoot: getTeamsDeviceUsageUserCounts Microsoft 365 Teams Device Usage User Counts metrics Period-based
Teams User Activity User Counts reportRoot: getTeamsUserActivityUserCounts Microsoft 365 Teams User Activity User Counts metrics Period-based
Teams User Activity User Detail reportRoot: getTeamsUserActivityUserDetail Microsoft 365 Teams User Activity User Detail Day-based
Viva Engage Groups Activity Group Detail reportRoot: getYammerGroupsActivityDetail Microsoft 365 Viva Engage Groups Activity Day-based
Viva Engage Device Usage User Counts reportRoot: getYammerDeviceUsageUserCounts Microsoft 365 Viva Engage Device Usage User Counts metrics Period-based
Service Health reportRoot: getServiceHealth Microsoft 365 Service Health metrics No aggregation

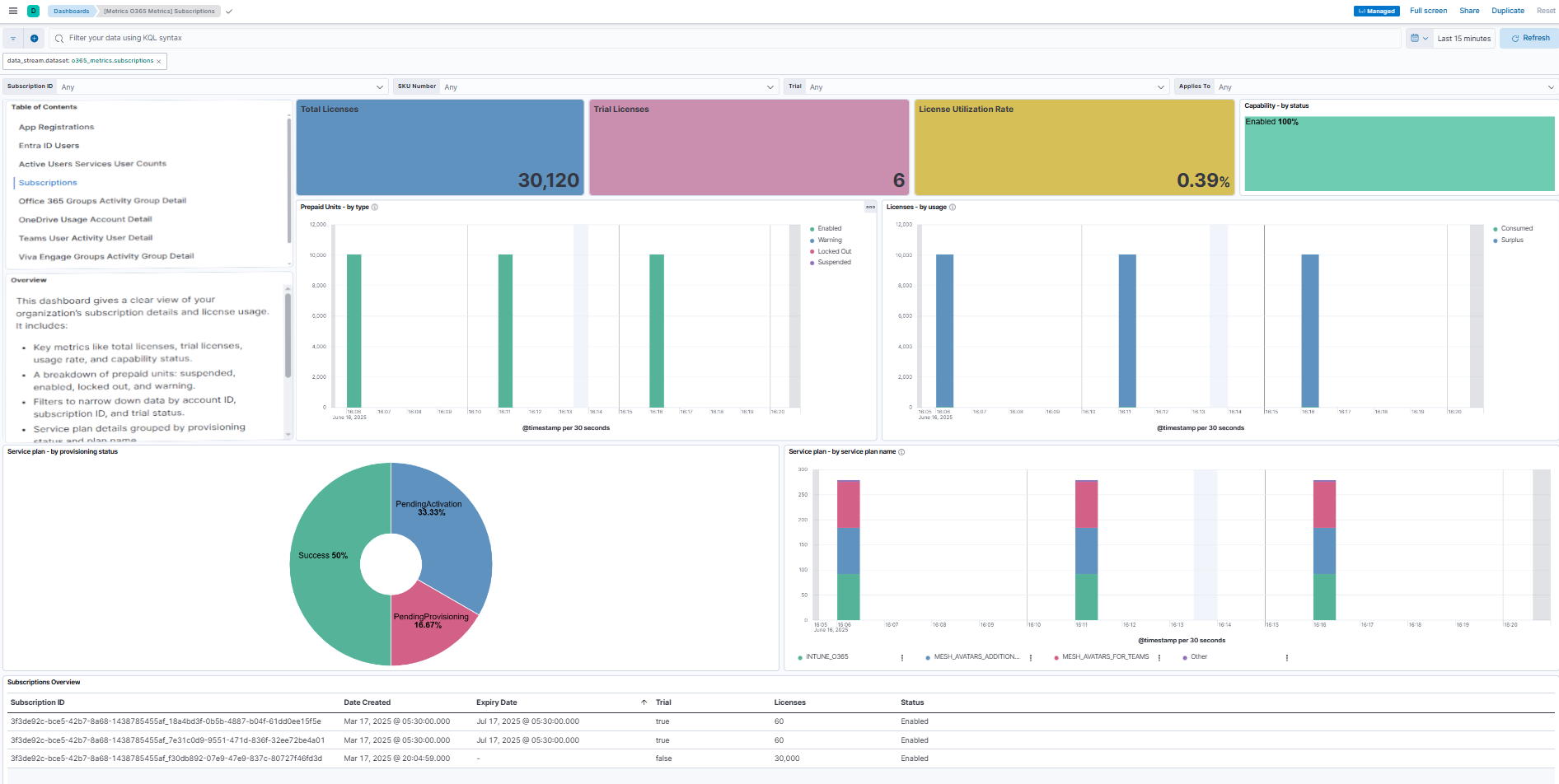

Subscriptions reportRoot: subscribedSkus Microsoft 365 Subscriptions metrics No aggregation
Teamms Call Quality reportRoot: callRecords Microsoft 365 Teams Call Quality metrics No aggregation

To use this package you need to enable datastreams you want to collect metrics for and register an application in Microsoft Entra ID (formerly known as Azure Active Directory).

Once the application is registered, configure and/or note the following to setup O365 metrics Elastic integration:

  1. Note Application (client) ID and the Directory (tenant) ID in the registered application's Overview page.
  2. Create a new secret to configure the authentication of your application.
    • Navigate to Certificates & Secrets section.
    • Click New client secret and provide some description to create new secret.
    • Note the Value which is required for the integration setup.
  3. Add permissions to your registered application. Please check O365 Graph API permissions for more details.
    • Navigate to API permissions page and click Add a permission
    • Select Office 365 Management APIs tile from the listed tiles.
    • Click Application permissions.
    • If User.Read and Reports.Read.All permission under Microsoft.Graph tile is not added by default, add this permission. Additional permissions, such as ServiceHealth.Read.All for data streams like Service Health may be required. Refer to the API documentation under the Permissions section to determine the necessary permissions.
    • After the permissions are added, the admin has to grant consent for these permissions.

Once the secret is created and permissions are granted by admin, setup Elastic Agent's Microsoft O365 integration:

  • Click Add Microsoft Office 365.
  • Enable Collect Office 365 metrics via Graph API using CEL Input.
  • Add Directory (tenant) ID noted in Step 1 into Directory (tenant) ID parameter. This is required field.
  • Add Application (client) ID noted in Step 1 into Application (client) ID parameter. This is required field.
  • Add the secret Value noted in Step 2 into Client Secret parameter. This is required field.
  • Oauth2 Token URL can be added to generate the tokens during the oauth2 flow. If not provided, above Directory (tenant) ID will be used for oauth2 token generation.
  • Modify any other parameters as necessary.

Some data-streams listed earlier ingest data aggregated by a period, while other data-streams ingest data aggregated by day i.e., aggregated daily.

  • When configuring Period-based data-streams, the configuration option Period must be used during setup. The supported values are: D7, D30, D90, and D180.
  • As Day-based data-streams ingest aggregated data per day, the configuration option Initial Interval must be set which indicates how far back (in number of days) to fetch the data. Values between 1-28 are allowed.

Microsoft 365 reports are typically available within 48 hours, but may sometimes take several days. As per their documentation, data quality is ensured by performing daily validation checks to fill any gaps in data. During this process, users may notice differences in historical data in Microsoft 365 Reports in admin center.

To ensure these filled gaps and historical data-accuracy is also ingested into Elastic, the Microsoft Office 365 Metrics integration enables you to adjust Sync Days in the past parameter for Day-based data-streams. You can use this parameter to re-fetch the Microsoft 365 reports starting from N days in the past. Default value for this paramater is 3. You can gradually increase this value if you see any discrepancies between Microsoft Reports and Elastic data (maximum value allowed is 28).

Due to this re-fetching of data on same dates and the way Elastic data-streams work in append-only design, the ingested data may have duplicates. For example, you may see duplicate documents in Elastic on the source data-stream backed indices per resource (user/group/site) per report date. To maintain only the latest copy of document, the Microsoft Office 365 Metrics integration installs Latest Transforms, one per report. These latest transform periodically pulls the data from source data-stream backed indices into a destination non-data-stream backed index. Hence the destination indices only contains single (latest) document per resource (user/group/site) per report date. Inside the reports dataset, you can distinguish between source and destination indices using the field labels.is_transform_source. This is set to true for source data-stream backed indices and false for destination (latest) indices.

Thus when searching for data, you should use a filter labels.is_transform_source: false to avoid seeing any duplicates. The Microsoft Office 365 Metrics integration dashboards also has this filter to only show the latest datapoints.

As the latest data is available in destination indices, the source data-stream backed indices are purged based on ILM policy metrics-o365_metrics.<data_stream>-default_policy.

o365.metrics.report.name Source filter Source indices Destination filter Destination indices Destination alias
Microsoft 365 Groups Activity Group Detail labels.is_transform_source: true metrics-o365_metrics.groups_activity_group_detail-* labels.is_transform_source: false metrics-o365_metrics.groups_activity_group_detail_latest-* metrics-o365_metrics.groups_activity_group_detail_latest
OneDrive Usage Account Detail labels.is_transform_source: true metrics-o365_metrics.onedrive_usage_account_detail-* labels.is_transform_source: false metrics-o365_metrics.onedrive_usage_account_detail_latest-* metrics-o365_metrics.onedrive_usage_account_detail_latest
Teams User Activity User Detail labels.is_transform_source: true metrics-o365_metrics.teams_user_activity_user_detail-* labels.is_transform_source: false metrics-o365_metrics.teams_user_activity_user_detail_latest-* metrics-o365_metrics.teams_user_activity_user_detail_latest
Viva Engage Groups Activity Group Detail labels.is_transform_source: true metrics-o365_metrics.viva_engage_groups_activity_group_detail-* labels.is_transform_source: false metrics-o365_metrics.viva_engage_groups_activity_group_detail_latest-* metrics-o365_metrics.viva_engage_groups_activity_group_detail_latest

Note: Sync Days in the past and Latest Transforms are only used in Day-based data-streams, i.e., for data-streams aggregated per day.

By default for all Microsoft 365 usage reports, the user names, emails, group, or site information are anonymized by Microsoft using MD5 hashes. You can revert this change for a tenant and show identifiable user, group, and site information if your organization's privacy practices allow it. To do this, follow below steps:

  1. Login to Microsoft 365 admin center
  2. Navigate to Settings --> Org Settings --> Services page.
  3. Select Reports
  4. Uncheck the statement Display concealed user, group, and site names in all reports, and then save your changes.

Uses the Microsoft 365 Graph API to retrieve metrics from Microsoft 365.

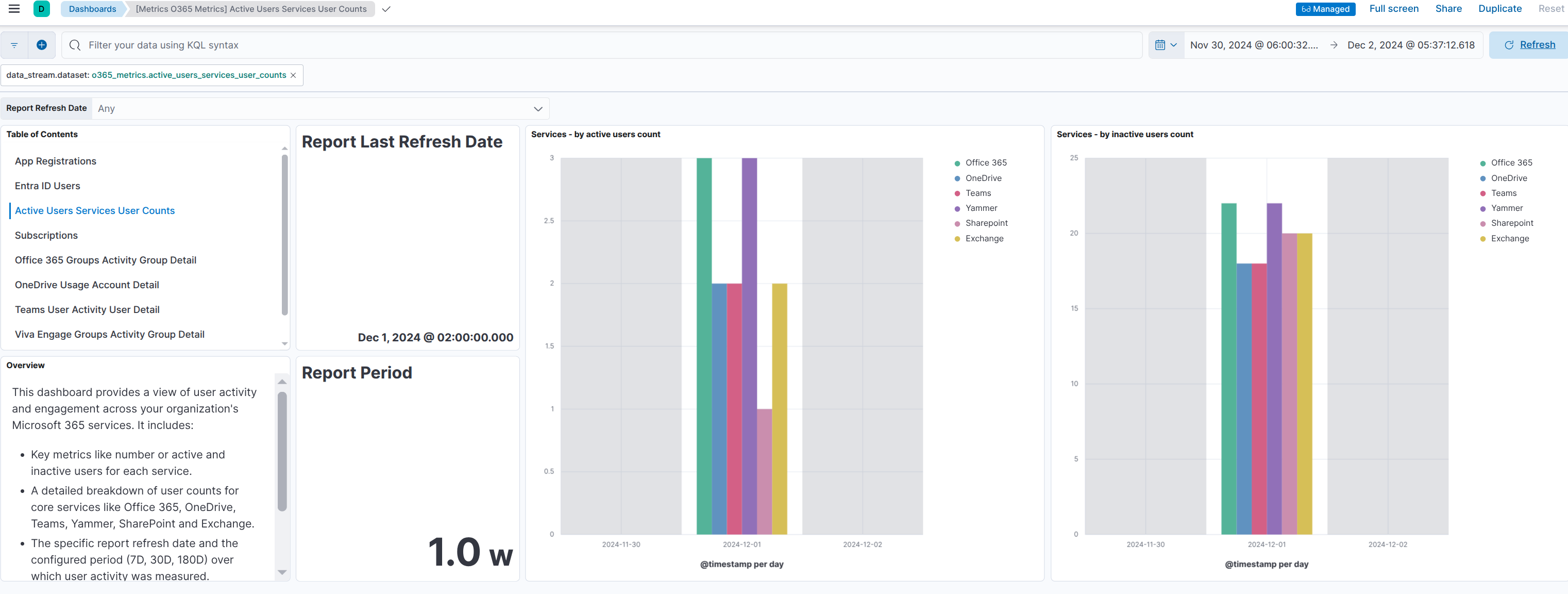

Get details about Active Users Services User Count from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "active": {
                "users": {
                    "services": {
                        "user": {
                            "counts": {
                                "exchange": {
                                    "active": {
                                        "count": "0"
                                    },
                                    "inactive": {
                                        "count": "22"
                                    }
                                },
                                "office365": {
                                    "active": {
                                        "count": "0"
                                    },
                                    "inactive": {
                                        "count": "25"
                                    }
                                },
                                "onedrive": {
                                    "active": {
                                        "count": "0"
                                    },
                                    "inactive": {
                                        "count": "20"
                                    }
                                },
                                "report": {
                                    "period": {
                                        "day": "7"
                                    },
                                    "refresh_date": "2024-11-29"
                                },
                                "sharepoint": {
                                    "active": {
                                        "count": "0"
                                    },
                                    "inactive": {
                                        "count": "20"
                                    }
                                },
                                "teams": {
                                    "active": {
                                        "count": "0"
                                    },
                                    "inactive": {
                                        "count": "20"
                                    }
                                },
                                "yammer": {
                                    "active": {
                                        "count": "0"
                                    },
                                    "inactive": {
                                        "count": "25"
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "1bd16076-38b3-44b9-980b-eab55ebe95b9",
        "ephemeral_id": "b21b52df-710e-4014-bb1c-d9e60091e1e7",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2024-12-24T10:36:47.702Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.active_users_services_user_counts"
    },
    "elastic_agent": {
        "id": "1bd16076-38b3-44b9-980b-eab55ebe95b9",
        "version": "8.16.0",
        "snapshot": false
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.15.153.1-microsoft-standard-WSL2",
            "codename": "noble",
            "name": "Ubuntu",
            "type": "linux",
            "family": "debian",
            "version": "24.04.1 LTS (Noble Numbat)",
            "platform": "ubuntu"
        },
        "containerized": true,
        "ip": [
            "172.18.0.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-AC-12-00-07"
        ],
        "architecture": "x86_64"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2024-12-24T10:36:57Z",
        "dataset": "o365_metrics.active_users_services_user_counts"
    },
    "tags": [
        "o365.metrics.active.users.services.user.counts",
        "preserve_original_event"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.active.users.services.user.counts.exchange.active.count Number of Exchange active users. integer gauge
o365.metrics.active.users.services.user.counts.exchange.inactive.count Number of Exchange inactive users. integer gauge
o365.metrics.active.users.services.user.counts.office365.active.count Number of Office 365 active users. integer gauge
o365.metrics.active.users.services.user.counts.office365.inactive.count Number of Office 365 inactive users. integer gauge
o365.metrics.active.users.services.user.counts.onedrive.active.count Number of OneDrive active users. integer gauge
o365.metrics.active.users.services.user.counts.onedrive.inactive.count Number of OneDrive inactive users. integer gauge
o365.metrics.active.users.services.user.counts.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.active.users.services.user.counts.report.refresh_date The date when the report data was last updated. date
o365.metrics.active.users.services.user.counts.sharepoint.active.count Number of SharePoint active users. integer gauge
o365.metrics.active.users.services.user.counts.sharepoint.inactive.count Number of SharePoint inactive users. integer gauge
o365.metrics.active.users.services.user.counts.teams.active.count Number of Teams active users. integer gauge
o365.metrics.active.users.services.user.counts.teams.inactive.count Number of Teams inactive users. integer gauge
o365.metrics.active.users.services.user.counts.yammer.active.count Number of Yammer active users. integer gauge
o365.metrics.active.users.services.user.counts.yammer.inactive.count Number of Yammer inactive users. integer gauge

Get details about Mailbox Usage Quota Status from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "mailbox": {
                "usage": {
                    "quota": {
                        "status": {
                            "send_receive_prohibited": {
                                "count": 9
                            },
                            "indeterminate": {
                                "count": 3
                            },
                            "under_limit": {
                                "count": 20
                            },
                            "warning_issued": {
                                "count": 1
                            },
                            "report": {
                                "date": "2025-01-26",
                                "period": {
                                    "day": "7"
                                },
                                "refresh_date": "2025-01-26"
                            },
                            "send_prohibited": {
                                "count": 6
                            }
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "0af64850-a098-46f3-a3c6-98b706017b44",
        "type": "filebeat",
        "ephemeral_id": "3c0f3a0f-f3dd-4793-affb-f9441816b674",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-26",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.mailbox_usage_quota_status"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "family": "",
            "type": "linux",
            "version": "20230201",
            "platform": "wolfi"
        },
        "containerized": false,
        "ip": [
            "192.168.32.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-C0-A8-20-07"
        ],
        "architecture": "aarch64"
    },
    "elastic_agent": {
        "id": "0af64850-a098-46f3-a3c6-98b706017b44",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T12:46:50Z",
        "dataset": "o365_metrics.mailbox_usage_quota_status"
    },
    "tags": [
        "o365.metrics.mailbox.usage"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.mailbox.usage.quota.status.indeterminate.count The number of mailboxes where the quota status could not be determined. long gauge
o365.metrics.mailbox.usage.quota.status.report.date The specific date for which the report data applies. date
o365.metrics.mailbox.usage.quota.status.report.period.day The duration (e.g., 7 days) over which the quota status data is aggregated. integer d
o365.metrics.mailbox.usage.quota.status.report.refresh_date The date when the report data was last updated. date
o365.metrics.mailbox.usage.quota.status.send_prohibited.count The number of mailboxes restricted from sending emails due to exceeding their send quota during the reporting period. long gauge
o365.metrics.mailbox.usage.quota.status.send_receive_prohibited.count The number of mailboxes restricted from both sending and receiving emails due to exceeding their total quota during the reporting period. long gauge
o365.metrics.mailbox.usage.quota.status.under_limit.count The number of mailboxes operating within their assigned quota limits during the reporting period. long gauge
o365.metrics.mailbox.usage.quota.status.warning_issued.count The number of mailboxes that have exceeded their warning threshold quota during the reporting period. long gauge

Get details about Mailbox Usage Detail from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "mailbox": {
                "usage": {
                    "detail": {
                        "item": {
                            "count": 181
                        },
                        "deleted_item_size": {
                            "byte": 440815
                        },
                        "prohibit_send_quota": {
                            "byte": 106300440576
                        },
                        "deleted_item_quota": {
                            "byte": 32212254720
                        },
                        "last_activity_date": "2024-10-11",
                        "display_name": "Dgo Sky",
                        "has_archive": true,
                        "issue_warning_quota": {
                            "byte": 105226698752
                        },
                        "deleted_item": {
                            "count": 66
                        },
                        "user_principal_name": "DgoS@OnMicrosoft.com",
                        "is_deleted": false,
                        "report": {
                            "period": {
                                "day": "7"
                            },
                            "refresh_date": "2025-01-22"
                        },
                        "prohibit_send_receive_quota": {
                            "byte": 107374182400
                        },
                        "created_date": "2024-10-11",
                        "storage_used": {
                            "byte": 6399001
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "e6f906c1-7164-4902-843f-78493e2b68a4",
        "ephemeral_id": "d04fab8b-d48e-4df3-83f1-aa2022d19736",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-22",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.mailbox_usage_detail"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "type": "linux",
            "version": "20230201",
            "platform": "wolfi"
        },
        "ip": [
            "172.24.0.7"
        ],
        "containerized": false,
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-AC-18-00-07"
        ],
        "architecture": "aarch64"
    },
    "elastic_agent": {
        "id": "e6f906c1-7164-4902-843f-78493e2b68a4",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-24T09:32:25Z",
        "dataset": "o365_metrics.mailbox_usage_detail"
    },
    "tags": [
        "o365.metrics.mailbox.usage"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.mailbox.usage.detail.created_date The date the mailbox was created. date
o365.metrics.mailbox.usage.detail.deleted_date The date the mailbox was deleted. date
o365.metrics.mailbox.usage.detail.deleted_item.count The number of items in the deleted items folder. long gauge
o365.metrics.mailbox.usage.detail.deleted_item_quota.byte The quota limit for the deleted items folder (in bytes). long byte gauge
o365.metrics.mailbox.usage.detail.deleted_item_size.byte The total size of items in the deleted items folder (in bytes). long byte gauge
o365.metrics.mailbox.usage.detail.display_name The full name of the user. keyword
o365.metrics.mailbox.usage.detail.has_archive Indicates if the user has an archive mailbox. boolean
o365.metrics.mailbox.usage.detail.is_deleted Indicates if the mailbox is deleted. boolean
o365.metrics.mailbox.usage.detail.issue_warning_quota.byte The mailbox size limit at which a warning is issued (in bytes). long byte gauge
o365.metrics.mailbox.usage.detail.item.count The total number of items in the mailbox. long gauge
o365.metrics.mailbox.usage.detail.last_activity_date The most recent activity date for the mailbox. date
o365.metrics.mailbox.usage.detail.prohibit_send_quota.byte The mailbox size limit at which sending messages is prohibited (in bytes). long byte gauge
o365.metrics.mailbox.usage.detail.prohibit_send_receive_quota.byte The mailbox size limit at which sending and receiving messages is prohibited (in bytes). long byte gauge
o365.metrics.mailbox.usage.detail.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.mailbox.usage.detail.report.refresh_date The date when the report data was last updated. date
o365.metrics.mailbox.usage.detail.storage_used.byte The total storage used in the mailbox (in bytes). long byte gauge
o365.metrics.mailbox.usage.detail.user_principal_name The email or principal username of the user. keyword

Get details about Microsoft 365 groups activity by group from Microsoft Graph API.

Example
{
    "@timestamp": "2024-12-24",
    "ecs": {
        "version": "8.16.0"
    },
    "event": {
        "original": "{\"Exchange Mailbox Storage Used (Byte)\":\"698640\",\"Exchange Mailbox Total Item Count\":\"9\",\"Exchange Received Email Count\":\"\",\"External Member Count\":\"0\",\"Group Display Name\":\"delete-1\",\"Group Id\":\"faa1ff4a-4677-4d4c-842a-dc63eb8b2ae3\",\"Group Type\":\"Private\",\"Is Deleted\":\"False\",\"Last Activity Date\":\"\",\"Member Count\":\"2\",\"Owner Principal Name\":\"AV@abc.onmicrosoft.com\",\"Report Period\":\"1\",\"SharePoint Active File Count\":\"\",\"SharePoint Site Storage Used (Byte)\":\"2029128\",\"SharePoint Total File Count\":\"6\",\"Yammer Liked Message Count\":\"\",\"Yammer Posted Message Count\":\"\",\"Yammer Read Message Count\":\"\",\"report\":{\"api_path\":\"/reports/getOffice365GroupsActivityDetail\",\"name\":\"Microsoft 365 Groups Activity Group Detail\"},\"Report Refresh Date\":\"2024-12-24\"}"
    },
    "group": {
        "id": "faa1ff4a-4677-4d4c-842a-dc63eb8b2ae3",
        "name": "delete-1"
    },
    "o365": {
        "metrics": {
            "groups": {
                "activity": {
                    "group": {
                        "detail": {
                            "exchange_mailbox_storage_used": {
                                "byte": 698640
                            },
                            "exchange_mailbox_total_item": {
                                "count": 9
                            },
                            "external_member": {
                                "count": 0
                            },
                            "group_display_name": "delete-1",
                            "group_id": "faa1ff4a-4677-4d4c-842a-dc63eb8b2ae3",
                            "group_type": "Private",
                            "is_deleted": false,
                            "member": {
                                "count": 2
                            },
                            "owner_principal_name": "AV@abc.onmicrosoft.com",
                            "report": {
                                "period": {
                                    "day": "1"
                                },
                                "refresh_date": "2024-12-24"
                            },
                            "sharepoint_site_storage_used": {
                                "byte": 2029128
                            },
                            "sharepoint_total_file": {
                                "count": 6
                            }
                        }
                    }
                }
            },
            "report": {
                "api_path": "/reports/getOffice365GroupsActivityDetail",
                "name": "Microsoft 365 Groups Activity Group Detail"
            }
        }
    },
    "related": {
        "user": [
            "AV@abc.onmicrosoft.com"
        ]
    },
    "tags": [
        "preserve_duplicate_custom_fields",
        "preserve_original_event"
    ],
    "user": {
        "group": {
            "id": "faa1ff4a-4677-4d4c-842a-dc63eb8b2ae3",
            "name": "delete-1"
        },
        "name": "AV@abc.onmicrosoft.com"
    }
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. date
data_stream.dataset The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.namespace A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.type An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. constant_keyword
event.dataset Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. constant_keyword
event.module Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. constant_keyword
labels.is_transform_source Distinguishes between documents that are a source for a transform and documents that are an output of a transform, to facilitate easier filtering. constant_keyword
o365.metrics.groups.activity.group.detail.exchange_mailbox_storage_used.byte The storage used by the group's mailbox. long gauge
o365.metrics.groups.activity.group.detail.exchange_mailbox_total_item.count The total number of items in the group's mailbox. long gauge
o365.metrics.groups.activity.group.detail.exchange_received_email.count The number of messages received by the group. long gauge
o365.metrics.groups.activity.group.detail.external_member.count The number of external users in the group. long gauge
o365.metrics.groups.activity.group.detail.group_display_name The name of the group. keyword
o365.metrics.groups.activity.group.detail.group_id The id of the group. keyword
o365.metrics.groups.activity.group.detail.group_type The type of group. This can be private or public group. keyword
o365.metrics.groups.activity.group.detail.is_deleted If the group is deleted, but had activity in the reporting period it will show up in the grid with this flag set to true. boolean
o365.metrics.groups.activity.group.detail.last_activity_date The latest date a message was received by the group. This is the latest date an activity happened in an email conversation, Viva Engage, or the Site. date
o365.metrics.groups.activity.group.detail.member.count The number of members in the group. long gauge
o365.metrics.groups.activity.group.detail.owner_principal_name The name of the group owner. keyword
o365.metrics.groups.activity.group.detail.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.groups.activity.group.detail.report.refresh_date The date when the report data was last updated. date
o365.metrics.groups.activity.group.detail.sharepoint_active_file.count The number of files in the SharePoint group site that were acted on (viewed or modified, synched, shared internally or externally) during the reporting period. long gauge
o365.metrics.groups.activity.group.detail.sharepoint_site_storage_used.byte The amount of storage in MB used during the reporting period. long gauge
o365.metrics.groups.activity.group.detail.sharepoint_total_file.count The number of files stored in SharePoint group sites. long gauge
o365.metrics.groups.activity.group.detail.yammer_liked_message.count The number of messages liked in the Viva Engage group over the reporting period. long gauge
o365.metrics.groups.activity.group.detail.yammer_posted_message.count The number of messages posted in the Viva Engage group over the reporting period. long gauge
o365.metrics.groups.activity.group.detail.yammer_read_message.count The number of conversations read in the Viva Engage group over the reporting period. long gauge
o365.metrics.report.api_path Microsoft Graph API path used to pull the report. keyword
o365.metrics.report.name Name of the report. keyword

Get details about OneDrive usage by account from Microsoft Graph API.

Example
{
    "@timestamp": "2024-12-23",
    "ecs": {
        "version": "8.16.0"
    },
    "event": {
        "original": "{\"Active File Count\":\"1\",\"File Count\":\"7\",\"Is Deleted\":\"False\",\"Last Activity Date\":\"2024-12-23\",\"Owner Display Name\":\"ABC\",\"Owner Principal Name\":\"KR@abc.onmicrosoft.com\",\"Report Period\":\"1\",\"Site Id\":\"e1f0f31e-ba42-46a1-9f41-ef4849978cd8\",\"Site URL\":\"\",\"Storage Allocated (Byte)\":\"1099511627776\",\"Storage Used (Byte)\":\"1305970\",\"report\":{\"api_path\":\"/reports/getOneDriveUsageAccountDetail\",\"name\":\"OneDrive Usage Account Detail\"},\"Report Refresh Date\":\"2024-12-23\"}"
    },
    "o365": {
        "metrics": {
            "onedrive": {
                "usage": {
                    "account": {
                        "detail": {
                            "active_file": {
                                "count": 1
                            },
                            "file": {
                                "count": 7
                            },
                            "is_deleted": false,
                            "last_activity_date": "2024-12-23T00:00:00.000Z",
                            "owner_display_name": "ABC",
                            "owner_principal_name": "KR@abc.onmicrosoft.com",
                            "report": {
                                "period": {
                                    "day": "1"
                                },
                                "refresh_date": "2024-12-23"
                            },
                            "site_id": "e1f0f31e-ba42-46a1-9f41-ef4849978cd8",
                            "storage_allocated": {
                                "byte": 1099511627776
                            },
                            "storage_used": {
                                "byte": 1305970
                            }
                        }
                    }
                }
            },
            "report": {
                "api_path": "/reports/getOneDriveUsageAccountDetail",
                "name": "OneDrive Usage Account Detail"
            }
        }
    },
    "related": {
        "user": [
            "KR@abc.onmicrosoft.com"
        ]
    },
    "tags": [
        "preserve_duplicate_custom_fields",
        "preserve_original_event"
    ],
    "user": {
        "email": "KR@abc.onmicrosoft.com",
        "name": "KR@abc.onmicrosoft.com"
    }
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. date
data_stream.dataset The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.namespace A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.type An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. constant_keyword
event.dataset Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. constant_keyword
event.module Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. constant_keyword
labels.is_transform_source Distinguishes between documents that are a source for a transform and documents that are an output of a transform, to facilitate easier filtering. constant_keyword
o365.metrics.onedrive.usage.account.detail.active_file.count The number of active files within the time period. long gauge
o365.metrics.onedrive.usage.account.detail.file.count The number of files in the OneDrive. long gauge
o365.metrics.onedrive.usage.account.detail.is_deleted The deletion status of the OneDrive. It takes at least seven days for accounts to be marked as deleted. boolean
o365.metrics.onedrive.usage.account.detail.last_activity_date The latest date a file activity was performed in the OneDrive. If the OneDrive has had no file activity, the value will be blank. date
o365.metrics.onedrive.usage.account.detail.owner_display_name The username of the primary administrator of the OneDrive. keyword
o365.metrics.onedrive.usage.account.detail.owner_principal_name The email address of the owner of the OneDrive. keyword
o365.metrics.onedrive.usage.account.detail.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.onedrive.usage.account.detail.report.refresh_date The date when the report data was last updated. date
o365.metrics.onedrive.usage.account.detail.site_id The site ID of the site. keyword
o365.metrics.onedrive.usage.account.detail.site_url The web address for the user's OneDrive. Note: URL will be empty temporarily. keyword
o365.metrics.onedrive.usage.account.detail.storage_allocated.byte The amount of storage the OneDrive is allocated. long gauge
o365.metrics.onedrive.usage.account.detail.storage_used.byte The amount of storage the OneDrive uses. long gauge
o365.metrics.report.api_path Microsoft Graph API path used to pull the report. keyword
o365.metrics.report.name Name of the report. keyword

Get details about OneDrive usage by account counts from Microsoft Graph API.

Example
{
    "@timestamp": "2024-12-24T09:33:50.076Z",
    "agent": {
        "name": "docker-fleet-agent",
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "ephemeral_id": "08417a8d-9698-4c62-b7dc-e1b048647626",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.onedrive_usage_account_counts"
    },
    "ecs": {
        "version": "8.16.0"
    },
    "elastic_agent": {
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2024-12-24T09:33:51Z",
        "dataset": "o365_metrics.onedrive_usage_account_counts",
        "original": "{\"Active\":\"16\",\"Report Date\":\"2024-11-23\",\"Report Period\":\"7\",\"Site Type\":\"All\",\"Total\":\"18\",\"Report Refresh Date\":\"2024-11-29\"}"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "type": "linux",
            "family": "",
            "version": "20230201",
            "platform": "wolfi"
        },
        "containerized": false,
        "ip": [
            "192.168.48.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-C0-A8-30-07"
        ],
        "architecture": "aarch64"
    },
    "o365": {
        "metrics": {
            "onedrive": {
                "usage": {
                    "account": {
                        "counts": {
                            "active": {
                                "count": 14
                            },
                            "report": {
                                "date": "2024-11-23",
                                "period": {
                                    "day": "1"
                                },
                                "refresh_date": "2024-11-29"
                            },
                            "total": {
                                "count": 18
                            }
                        }
                    }
                }
            }
        }
    },
    "tags": [
        "o365.metrics.onedrive_usage_account_counts",
        "preserve_original_event"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.onedrive.usage.account.counts.active.count The number of OneDrive accounts that were active during the reporting period. long gauge
o365.metrics.onedrive.usage.account.counts.report.date The date the report was generated. date
o365.metrics.onedrive.usage.account.counts.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.onedrive.usage.account.counts.report.refresh_date The date when the report data was last updated. date
o365.metrics.onedrive.usage.account.counts.total.count The total number of OneDrive accounts evaluated in the report. long gauge

Get details about OneDrive usage by file counts from Microsoft Graph API.

Example
{
    "@timestamp": "2024-12-24T09:33:50.076Z",
    "agent": {
        "name": "docker-fleet-agent",
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "ephemeral_id": "08417a8d-9698-4c62-b7dc-e1b048647626",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.onedrive_usage_file_counts"
    },
    "ecs": {
        "version": "8.16.0"
    },
    "elastic_agent": {
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2024-12-24T09:33:51Z",
        "dataset": "o365_metrics.onedrive_usage_file_counts",
        "original": "{\"Active\":\"16\",\"Report Date\":\"2024-11-23\",\"Report Period\":\"7\",\"Site Type\":\"All\",\"Total\":\"164\",\"Report Refresh Date\":\"2024-11-29\"}"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "type": "linux",
            "family": "",
            "version": "20230201",
            "platform": "wolfi"
        },
        "containerized": false,
        "ip": [
            "192.168.48.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-C0-A8-30-07"
        ],
        "architecture": "aarch64"
    },
    "o365": {
        "metrics": {
            "onedrive": {
                "usage": {
                    "file": {
                        "counts": {
                            "active": {
                                "count": 14
                            },
                            "report": {
                                "date": "2024-11-23",
                                "period": {
                                    "day": "7"
                                },
                                "refresh_date": "2024-11-29"
                            },
                            "total": {
                                "count": 164
                            }
                        }
                    }
                }
            }
        }
    },
    "tags": [
        "o365.metrics.onedrive_usage_file_counts",
        "preserve_original_event"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.onedrive.usage.file.counts.active.count The number of OneDrive accounts with active file usage during the reporting period. long gauge
o365.metrics.onedrive.usage.file.counts.report.date The date the report was generated. date
o365.metrics.onedrive.usage.file.counts.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.onedrive.usage.file.counts.report.refresh_date The date when the report data was last updated. date
o365.metrics.onedrive.usage.file.counts.total.count The total number of OneDrive accounts evaluated in the report. long gauge

Get details about OneDrive usage by storage from Microsoft Graph API.

Example
{
    "@timestamp": "2024-12-24T09:33:50.076Z",
    "agent": {
        "name": "docker-fleet-agent",
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "ephemeral_id": "08417a8d-9698-4c62-b7dc-e1b048647626",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.onedrive_usage_storage"
    },
    "ecs": {
        "version": "8.16.0"
    },
    "elastic_agent": {
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2024-12-24T09:33:51Z",
        "dataset": "o365_metrics.onedrive_usage_storage",
        "original": "{\"Report Date\":\"2024-11-23\",\"Report Period\":\"7\",\"Site Type\":\"All\",\"Storage Used (Byte)\":\"91659303\",\"Report Refresh Date\":\"2024-11-29\"}"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "type": "linux",
            "family": "",
            "version": "20230201",
            "platform": "wolfi"
        },
        "containerized": false,
        "ip": [
            "192.168.48.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-C0-A8-30-07"
        ],
        "architecture": "aarch64"
    },
    "o365": {
        "metrics": {
            "onedrive": {
                "usage": {
                    "storage": {
                        "report": {
                            "date": "2024-12-16",
                            "period": {
                                "day": "7"
                            },
                            "refresh_date": "2024-12-22"
                        },
                        "used": {
                            "byte": 91659303
                        }
                    }
                }
            }
        }
    },
    "tags": [
        "preserve_original_event",
        "o365.metrics.onedrive_usage_storage"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.onedrive.usage.storage.report.date The date the report was generated. date
o365.metrics.onedrive.usage.storage.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.onedrive.usage.storage.report.refresh_date The date when the report data was last updated. date
o365.metrics.onedrive.usage.storage.used.byte The total storage used across OneDrive accounts during the reporting period, in bytes. long byte gauge

Get details about Outlook Activity from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "outlook": {
                "activity": {
                    "meeting_interacted": {
                        "count": 6
                    },
                    "meeting_created": {
                        "count": 0
                    },
                    "emails_received": {
                        "count": 11
                    },
                    "emails_sent": {
                        "count": 1
                    },
                    "report": {
                        "date": "2025-01-21",
                        "period": {
                            "day": "7"
                        },
                        "refresh_date": "2025-01-26"
                    },
                    "emails_read": {
                        "count": 6
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "e416de39-a342-4f53-86e7-e36d8846b4b7",
        "ephemeral_id": "d9e690ae-7a58-4c59-b143-1408bbb93a4f",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-21",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.outlook_activity"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "type": "linux",
            "family": "",
            "version": "20230201",
            "platform": "wolfi"
        },
        "containerized": false,
        "ip": [
            "192.168.0.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-C0-A8-00-07"
        ],
        "architecture": "aarch64"
    },
    "elastic_agent": {
        "id": "e416de39-a342-4f53-86e7-e36d8846b4b7",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T08:13:54Z",
        "dataset": "o365_metrics.outlook_activity"
    },
    "tags": [
        "o365.metrics.outlook.activity"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.outlook.activity.emails_read.count The count of email messages read by users during the reporting period. long gauge
o365.metrics.outlook.activity.emails_received.count The count of email messages received by users during the reporting period. long gauge
o365.metrics.outlook.activity.emails_sent.count The count of email messages sent by users during the reporting period. long gauge
o365.metrics.outlook.activity.meeting_created.count The count of calendar meetings created by users during the reporting period. long gauge
o365.metrics.outlook.activity.meeting_interacted.count The count of meetings where users interacted (e.g., accepted, declined, or modified) during the reporting period. long gauge
o365.metrics.outlook.activity.report.date The specific date for which the report data applies. date
o365.metrics.outlook.activity.report.period.day The duration (e.g., 7 days) over which the report data is aggregated. integer d
o365.metrics.outlook.activity.report.refresh_date The date when the report data was last updated. date

Get details about Microsoft Outlook App Usage Version Counts from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "outlook": {
                "app": {
                    "usage": {
                        "version": {
                            "counts": {
                                "outlook_2013": {
                                    "count": 1
                                },
                                "outlook_2016": {
                                    "count": 7
                                },
                                "outlook_2007": {
                                    "count": 6
                                },
                                "undetermined": {
                                    "count": 3
                                },
                                "report": {
                                    "period": {
                                        "day": "7"
                                    },
                                    "refresh_date": "2025-01-26"
                                },
                                "outlook_2019": {
                                    "count": 2
                                },
                                "outlook_m365": {
                                    "count": 10
                                },
                                "outlook_2010": {
                                    "count": 1
                                }
                            }
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "e6840d3f-0681-4dde-b0e6-f0e767ba296c",
        "ephemeral_id": "5180e26c-bab3-433c-9dce-fd0be1cabfd0",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-26",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.outlook_app_usage_version_counts"
    },
    "elastic_agent": {
        "id": "e6840d3f-0681-4dde-b0e6-f0e767ba296c",
        "version": "8.16.0",
        "snapshot": false
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "type": "linux",
            "family": "",
            "version": "20230201",
            "platform": "wolfi"
        },
        "ip": [
            "172.31.0.7"
        ],
        "containerized": false,
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-AC-1F-00-07"
        ],
        "architecture": "aarch64"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T07:05:32Z",
        "dataset": "o365_metrics.outlook_app_usage_version_counts"
    },
    "tags": [
        "o365metrics-outlook_app_usage_version_counts"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.outlook.app.usage.version.counts.outlook_2007.count The count of unique users using Outlook 2007 during the reporting period. long gauge
o365.metrics.outlook.app.usage.version.counts.outlook_2010.count The count of unique users using Outlook 2010 during the reporting period. long gauge
o365.metrics.outlook.app.usage.version.counts.outlook_2013.count The count of unique users using Outlook 2013 during the reporting period. long gauge
o365.metrics.outlook.app.usage.version.counts.outlook_2016.count The count of unique users using Outlook 2016 during the reporting period. long gauge
o365.metrics.outlook.app.usage.version.counts.outlook_2019.count The count of unique users using Outlook 2019 during the reporting period. long gauge
o365.metrics.outlook.app.usage.version.counts.outlook_m365.count The count of unique users using the Outlook Microsoft 365 version during the reporting period. long gauge
o365.metrics.outlook.app.usage.version.counts.report.period.day The duration (e.g., 7 days) over which the report data is aggregated. integer d
o365.metrics.outlook.app.usage.version.counts.report.refresh_date The date when the report data was last updated. date
o365.metrics.outlook.app.usage.version.counts.undetermined.count The count of unique users whose Outlook version could not be identified. long gauge

Get details about SharePoint Site Usage Detail from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "sharepoint": {
                "site": {
                    "usage": {
                        "detail": {
                            "active_file": {
                                "count": 16
                            },
                            "file": {
                                "count": 14
                            },
                            "is_deleted": "False",
                            "owner_display_name": "82D28824CBDAF3EA9AD693254DE8CC08",
                            "page_view": {
                                "count": 12
                            },
                            "report": {
                                "period": {
                                    "day": "7"
                                },
                                "refresh_date": "2024-12-22"
                            },
                            "root_web_template": "Team Site",
                            "site_id": "00000000-0000-0000-0000-000000000000",
                            "storage_allocated": {
                                "byte": 27487790694400
                            },
                            "storage_used": {
                                "byte": 1586077
                            },
                            "visited_page": {
                                "count": 14
                            }
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "027b7b81-b3c6-49b9-8f61-1a5e892e7bfe",
        "ephemeral_id": "f4133cae-978e-44e1-83e0-cab27e682a99",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2024-12-26T23:18:42.620Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.sharepoint_site_usage_detail"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.15.153.1-microsoft-standard-WSL2",
            "codename": "noble",
            "name": "Ubuntu",
            "type": "linux",
            "family": "debian",
            "version": "24.04.1 LTS (Noble Numbat)",
            "platform": "ubuntu"
        },
        "containerized": true,
        "ip": [
            "172.18.0.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-AC-12-00-07"
        ],
        "architecture": "x86_64"
    },
    "elastic_agent": {
        "id": "027b7b81-b3c6-49b9-8f61-1a5e892e7bfe",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2024-12-26T23:18:52Z",
        "dataset": "o365_metrics.sharepoint_site_usage_detail",
        "original": "{\"IsDeleted\":\"False\",\"SiteId\":\"00000000-0000-0000-0000-000000000000\",\"FileCount\":\"14\",\"StorageAllocated(Byte)\":\"27487790694400\",\"ReportRefreshDate\":\"2024-12-22\",\"ReportPeriod\":\"7\",\"ActiveFileCount\":\"16\",\"OwnerPrincipalName\":\"\",\"VisitedPageCount\":\"14\",\"OwnerDisplayName\":\"82D28824CBDAF3EA9AD693254DE8CC08\",\"SiteURL\":\"\",\"StorageUsedByte\":\"1586077\",\"RootWebTemplate\":\"Team Site\",\"LastActivityDate\":\"\",\"PageViewCount\":\"12\"}"
    },
    "tags": [
        "o365.metrics.sharepoint_site_usage_detail",
        "preserve_original_event"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.sharepoint.site.usage.detail.active_file.count The number of active files in the SharePoint site during the reporting period. long gauge
o365.metrics.sharepoint.site.usage.detail.file.count The total number of files in the SharePoint site. long gauge
o365.metrics.sharepoint.site.usage.detail.is_deleted Indicates whether the SharePoint site is deleted. boolean
o365.metrics.sharepoint.site.usage.detail.last_activity_date The last date of activity in the SharePoint site. date
o365.metrics.sharepoint.site.usage.detail.owner_display_name The display name of the SharePoint site owner. keyword
o365.metrics.sharepoint.site.usage.detail.owner_principal_name The principal name of the SharePoint site owner. keyword
o365.metrics.sharepoint.site.usage.detail.page_view.count The number of page views in the SharePoint site during the reporting period. long gauge
o365.metrics.sharepoint.site.usage.detail.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.sharepoint.site.usage.detail.report.refresh_date The date when the report data was last updated. date
o365.metrics.sharepoint.site.usage.detail.root_web_template The template used for the root web of the SharePoint site. keyword
o365.metrics.sharepoint.site.usage.detail.site_id The unique identifier of the SharePoint site. keyword
o365.metrics.sharepoint.site.usage.detail.site_url The URL of the SharePoint site. keyword
o365.metrics.sharepoint.site.usage.detail.storage_allocated.byte The amount of storage allocated to the SharePoint site, in bytes. long byte gauge
o365.metrics.sharepoint.site.usage.detail.storage_used.byte The amount of storage used in the SharePoint site, in bytes. long byte gauge
o365.metrics.sharepoint.site.usage.detail.visited_page.count The number of visited pages in the SharePoint site during the reporting period. long gauge

Get details about SharePoint Site Usage Storage from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "sharepoint": {
                "site": {
                    "usage": {
                        "storage": {
                            "report": {
                                "date": "2024-11-23",
                                "period": {
                                    "day": "7"
                                },
                                "refresh_date": "2024-11-29"
                            },
                            "storage_used": {
                                "byte": 1933176386
                            }
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "027b7b81-b3c6-49b9-8f61-1a5e892e7bfe",
        "ephemeral_id": "f4133cae-978e-44e1-83e0-cab27e682a99",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2024-12-26T23:18:42.620Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.sharepoint_site_usage_storage"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.15.153.1-microsoft-standard-WSL2",
            "codename": "noble",
            "name": "Ubuntu",
            "type": "linux",
            "family": "debian",
            "version": "24.04.1 LTS (Noble Numbat)",
            "platform": "ubuntu"
        },
        "containerized": true,
        "ip": [
            "172.18.0.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-AC-12-00-07"
        ],
        "architecture": "x86_64"
    },
    "elastic_agent": {
        "id": "027b7b81-b3c6-49b9-8f61-1a5e892e7bfe",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2024-12-26T23:18:52Z",
        "dataset": "o365_metrics.sharepoint_site_usage_storage",
        "original": "{\"Report Date\":\"2024-11-23\",\"Report Period\":\"7\",\"Site Type\":\"All\",\"Storage Used (Byte)\":\"1933176386\",\"Report Refresh Date\":\"2024-11-29\"}"
    },
    "tags": [
        "o365.metrics.sharepoint_site_usage_storage",
        "preserve_original_event"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.sharepoint.site.usage.storage.report.date The date the report was generated. date
o365.metrics.sharepoint.site.usage.storage.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.sharepoint.site.usage.storage.report.refresh_date The date when the report data was last updated. date
o365.metrics.sharepoint.site.usage.storage.storage_used.byte The total storage used across SharePoint sites during the reporting period, in bytes. long byte gauge

Get details about Teams User Activity User Counts from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "teams": {
                "user": {
                    "activity": {
                        "user": {
                            "counts": {
                                "other_actions": {
                                    "count": 0
                                },
                                "calls": {
                                    "count": 0
                                },
                                "private_chat_messages": {
                                    "count": 0
                                },
                                "report": {
                                    "date": "2025-01-13",
                                    "period": {
                                        "day": "7"
                                    },
                                    "refresh_date": "2025-01-19"
                                },
                                "meetings": {
                                    "count": 0
                                },
                                "team_chat_messages": {
                                    "count": 0
                                }
                            }
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "584e4497-cd3a-4e6f-b4b7-91889923e4e2",
        "type": "filebeat",
        "ephemeral_id": "9beddad6-b97a-43a4-8bd0-ac371e54deb9",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-13",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.teams_user_activity_user_counts"
    },
    "elastic_agent": {
        "id": "584e4497-cd3a-4e6f-b4b7-91889923e4e2",
        "version": "8.16.0",
        "snapshot": false
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "family": "",
            "type": "linux",
            "version": "20230201",
            "platform": "wolfi"
        },
        "containerized": false,
        "ip": [
            "172.27.0.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-AC-1B-00-07"
        ],
        "architecture": "aarch64"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-21T12:25:43Z",
        "dataset": "o365_metrics.teams_user_activity_user_counts"
    },
    "tags": [
        "o365.metrics.teams.user.activity.user.counts"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.teams.user.activity.user.counts.calls.count The number of calls made by Teams users. long gauge
o365.metrics.teams.user.activity.user.counts.meetings.count The number of meetings attended or organized by Teams users. long gauge
o365.metrics.teams.user.activity.user.counts.other_actions.count The count of other user actions within Teams. long gauge
o365.metrics.teams.user.activity.user.counts.private_chat_messages.count The number of messages sent in private 1:1 or group chats. long gauge
o365.metrics.teams.user.activity.user.counts.report.date The specific date for which the report data applies. date
o365.metrics.teams.user.activity.user.counts.report.period.day The duration (e.g., 7 days) over which the report data is aggregated. integer d
o365.metrics.teams.user.activity.user.counts.report.refresh_date The date when the report data was last updated. date
o365.metrics.teams.user.activity.user.counts.team_chat_messages.count The number of messages sent in Teams channels. long gauge

Get details about Teams User Activity User Detail from Microsoft Graph API.

Example
{
    "@timestamp": "2024-12-15",
    "ecs": {
        "version": "8.16.0"
    },
    "event": {
        "original": "{\"Ad Hoc Meetings Attended Count\":\"1\",\"Ad Hoc Meetings Organized Count\":\"2\",\"Assigned Products\":\"MICROSOFT 365 E5 DEVELOPER (WITHOUT WINDOWS AND AUDIO CONFERENCING)\",\"Audio Duration\":\"PT10S\",\"Audio Duration In Seconds\":\"10\",\"Call Count\":\"10\",\"Deleted Date\":\"\",\"Has Other Action\":\"No\",\"Is Deleted\":\"False\",\"Is Licensed\":\"Yes\",\"Last Activity Date\":\"\",\"Meeting Count\":\"10\",\"Meetings Attended Count\":\"1\",\"Meetings Organized Count\":\"2\",\"Post Messages\":\"100\",\"Private Chat Message Count\":\"1000\",\"Reply Messages\":\"123\",\"Report Period\":\"7\",\"Scheduled One-time Meetings Attended Count\":\"0\",\"Scheduled One-time Meetings Organized Count\":\"2\",\"Scheduled Recurring Meetings Attended Count\":\"3\",\"Scheduled Recurring Meetings Organized Count\":\"1\",\"Screen Share Duration\":\"PT5S\",\"Screen Share Duration In Seconds\":\"5\",\"Shared Channel Tenant Display Names\":\"Channel1\",\"Team Chat Message Count\":\"10\",\"Tenant Display Name\":\"MSFT\",\"Urgent Messages\":\"10\",\"User Id\":\"1345424e-c619-41d3-ab66-948ed302c504\",\"User Principal Name\":\"LH@abc.onmicrosoft.com\",\"Video Duration\":\"PT10S\",\"Video Duration In Seconds\":\"10\",\"Report Refresh Date\":\"2024-12-15\",\"report\": {\"api_path\":\"/reports/getTeamsUserActivityUserDetail\",\"name\":\"Microsoft Teams User Activity User Detail\"}}"
    },
    "o365": {
        "metrics": {
            "report": {
                "api_path": "/reports/getTeamsUserActivityUserDetail",
                "name": "Microsoft Teams User Activity User Detail"
            },
            "teams": {
                "user": {
                    "activity": {
                        "user": {
                            "detail": {
                                "ad_hoc_meetings_attended": {
                                    "count": 1
                                },
                                "ad_hoc_meetings_organized": {
                                    "count": 2
                                },
                                "assigned_products": "MICROSOFT 365 E5 DEVELOPER (WITHOUT WINDOWS AND AUDIO CONFERENCING)",
                                "audio_duration": {
                                    "formatted": "PT10S",
                                    "seconds": 10
                                },
                                "call": {
                                    "count": 10
                                },
                                "has_other_action": "No",
                                "is_deleted": false,
                                "is_licensed": true,
                                "meeting": {
                                    "count": 10
                                },
                                "meetings_attended": {
                                    "count": 1
                                },
                                "meetings_organized": {
                                    "count": 2
                                },
                                "post_messages": {
                                    "count": 100
                                },
                                "private_chat_message": {
                                    "count": 1000
                                },
                                "reply_messages": {
                                    "count": 123
                                },
                                "report": {
                                    "period": {
                                        "day": "7"
                                    },
                                    "refresh_date": "2024-12-15"
                                },
                                "scheduled_one_time_meetings_attended": {
                                    "count": 0
                                },
                                "scheduled_one_time_meetings_organized": {
                                    "count": 2
                                },
                                "scheduled_recurring_meetings_attended": {
                                    "count": 3
                                },
                                "scheduled_recurring_meetings_organized": {
                                    "count": 1
                                },
                                "screen_share_duration": {
                                    "formatted": "PT5S",
                                    "seconds": 5
                                },
                                "shared_channel_tenant_display_names": "Channel1",
                                "team_chat_message": {
                                    "count": 10
                                },
                                "tenant_display_name": "MSFT",
                                "urgent_messages": {
                                    "count": 10
                                },
                                "user_id": "1345424e-c619-41d3-ab66-948ed302c504",
                                "user_principal_name": "LH@abc.onmicrosoft.com",
                                "video_duration": {
                                    "formatted": "PT10S",
                                    "seconds": 10
                                }
                            }
                        }
                    }
                }
            }
        }
    },
    "related": {
        "user": [
            "1345424e-c619-41d3-ab66-948ed302c504",
            "LH@abc.onmicrosoft.com"
        ]
    },
    "tags": [
        "preserve_duplicate_custom_fields",
        "preserve_original_event"
    ],
    "user": {
        "email": "LH@abc.onmicrosoft.com",
        "id": "1345424e-c619-41d3-ab66-948ed302c504",
        "name": "LH@abc.onmicrosoft.com"
    }
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. date
data_stream.dataset The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.namespace A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.type An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. constant_keyword
event.dataset Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. constant_keyword
event.module Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. constant_keyword
labels.is_transform_source Distinguishes between documents that are a source for a transform and documents that are an output of a transform, to facilitate easier filtering. constant_keyword
o365.metrics.report.api_path Microsoft Graph API path used to pull the report. keyword
o365.metrics.report.name Name of the report. keyword
o365.metrics.teams.user.activity.user.detail.ad_hoc_meetings_attended.count The number of ad hoc meetings a user participated in during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.ad_hoc_meetings_organized.count The number of ad hoc meetings a user organized during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.assigned_products Microsoft products the user is assigned to. keyword
o365.metrics.teams.user.activity.user.detail.audio_duration.formatted The sum of the audio duration of a user used during the specified time period and formatted by ISO 8601. keyword
o365.metrics.teams.user.activity.user.detail.audio_duration.seconds The sum of the audio duration of a user used during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.call.count The number of 1:1 calls that the user participated in during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.deleted_date The deleted date of the user. date
o365.metrics.teams.user.activity.user.detail.has_other_action The User is active but has performed other activities than exposed action types offered in the report. keyword
o365.metrics.teams.user.activity.user.detail.is_deleted The deletion status of the user. boolean
o365.metrics.teams.user.activity.user.detail.is_licensed Selected if the user is licensed to use Teams. boolean
o365.metrics.teams.user.activity.user.detail.last_activity_date The last date that the user participated in a Microsoft Teams activity. date
o365.metrics.teams.user.activity.user.detail.meeting.count Refer to the 'meetings_attended.count' metric as defined below, as the current metric and 'meetings_attended.count' share the same definition. Microsoft intends to gradually phase out the current metric with 'meetings_attended.count'. long gauge
o365.metrics.teams.user.activity.user.detail.meetings_attended.count The sum of the one-time scheduled, recurring, ad hoc and unclassified meetings a user participated in during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.meetings_organized.count The sum of one-time scheduled, Recurring, ad hoc and unclassified meetings a user organized during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.post_messages.count The number of post messages in all channels during the specified time period. A post is the original message in a teams chat. long gauge
o365.metrics.teams.user.activity.user.detail.private_chat_message.count The number of unique messages that the user posted in a private chat during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.reply_messages.count The number of replied messages in all channels during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.teams.user.activity.user.detail.report.refresh_date The date when the report data was last updated. date
o365.metrics.teams.user.activity.user.detail.scheduled_one_time_meetings_attended.count The number of the one-time scheduled meetings a user participated in during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.scheduled_one_time_meetings_organized.count The number of one-time scheduled meetings a user organized during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.scheduled_recurring_meetings_attended.count The number of the recurring meetings a user participated in during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.scheduled_recurring_meetings_organized.count The number of recurring meetings a user organized during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.screen_share_duration.formatted The sum of the screen share duration of a user used during the specified time period and formatted by ISO 8601. keyword
o365.metrics.teams.user.activity.user.detail.screen_share_duration.seconds The sum of the screen share duration of a user used during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.shared_channel_tenant_display_names The names of internal or external tenants of shared channels where the user participated. keyword
o365.metrics.teams.user.activity.user.detail.team_chat_message.count The number of unique messages that the user posted in a team chat during the specified time period. This includes original posts and replies. long gauge
o365.metrics.teams.user.activity.user.detail.tenant_display_name The name of an internal or external tenant where a user belongs. keyword
o365.metrics.teams.user.activity.user.detail.urgent_messages.count The number of urgent messages during the specified time period. long gauge
o365.metrics.teams.user.activity.user.detail.user_id The ID of the user. keyword
o365.metrics.teams.user.activity.user.detail.user_principal_name The email address of the user. You can display the actual email address or make this field anonymous. See https://learn.microsoft.com/en-us/microsoft-365/admin/activity-reports/microsoft-teams-user-activity-preview?view=o365-worldwide#make-the-user-specific-data-anonymous for more details. keyword
o365.metrics.teams.user.activity.user.detail.video_duration.formatted The sum of the video duration of a user used during the specified time period and formatted by ISO 8601. keyword
o365.metrics.teams.user.activity.user.detail.video_duration.seconds The sum of the video duration of a user used during the specified time period. long gauge

Get details about Yammer Groups Activity Group Detail by group from Microsoft Graph API.

Example
{
    "@timestamp": "2024-12-23",
    "ecs": {
        "version": "8.16.0"
    },
    "event": {
        "original": "{\"Group Display Name\":\"All Company\",\"Group Type\":\"public\",\"Is Deleted\":\"False\",\"Last Activity Date\":\"2024-12-23\",\"Liked Count\":\"1\",\"Member Count\":\"2\",\"Office 365 Connected\":\"Yes\",\"Owner Principal Name\":\"\",\"Posted Count\":\"\",\"Read Count\":\"\",\"Report Period\":\"1\",\"report\":{\"api_path\":\"/reports/getYammerGroupsActivityDetail\",\"name\":\"Viva Engage Groups Activity Group Detail\"},\"Report Refresh Date\":\"2024-12-23\"}"
    },
    "group": {
        "name": "All Company"
    },
    "o365": {
        "metrics": {
            "report": {
                "api_path": "/reports/getYammerGroupsActivityDetail",
                "name": "Viva Engage Groups Activity Group Detail"
            },
            "viva_engage": {
                "groups": {
                    "activity": {
                        "group": {
                            "detail": {
                                "group_display_name": "All Company",
                                "group_type": "public",
                                "is_deleted": false,
                                "last_activity_date": "2024-12-23T00:00:00.000Z",
                                "liked": {
                                    "count": 1
                                },
                                "member": {
                                    "count": 2
                                },
                                "office_365_connected": true,
                                "report": {
                                    "period": {
                                        "day": "1"
                                    },
                                    "refresh_date": "2024-12-23"
                                }
                            }
                        }
                    }
                }
            }
        }
    },
    "tags": [
        "preserve_duplicate_custom_fields",
        "preserve_original_event"
    ],
    "user": {
        "group": {
            "name": "All Company"
        }
    }
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. date
data_stream.dataset The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.namespace A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.type An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. constant_keyword
event.dataset Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. constant_keyword
event.module Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. constant_keyword
labels.is_transform_source Distinguishes between documents that are a source for a transform and documents that are an output of a transform, to facilitate easier filtering. constant_keyword
o365.metrics.report.api_path Microsoft Graph API path used to pull the report. keyword
o365.metrics.report.name Name of the report. keyword
o365.metrics.viva_engage.groups.activity.group.detail.group_display_name The name of the group. keyword
o365.metrics.viva_engage.groups.activity.group.detail.group_type The type of group, public or private. keyword
o365.metrics.viva_engage.groups.activity.group.detail.is_deleted If the group is deleted, but had activity in the reporting period it will show up in the grid with this flag set to true. boolean
o365.metrics.viva_engage.groups.activity.group.detail.last_activity_date The latest date a message was read, posted or liked by the group. date
o365.metrics.viva_engage.groups.activity.group.detail.liked.count The number of messages liked in the Viva Engage group over the reporting period. long gauge
o365.metrics.viva_engage.groups.activity.group.detail.member.count The number of members in the group. long gauge
o365.metrics.viva_engage.groups.activity.group.detail.office_365_connected Indicates whether the Viva Engage group is also a Microsoft 365 group. boolean
o365.metrics.viva_engage.groups.activity.group.detail.owner_principal_name The name of the group administrator, or owner. keyword
o365.metrics.viva_engage.groups.activity.group.detail.posted.count The number of messages posted in the Viva Engage group over the reporting period. long gauge
o365.metrics.viva_engage.groups.activity.group.detail.read.count The number of conversations read in the Viva Engage group over the reporting period. long gauge
o365.metrics.viva_engage.groups.activity.group.detail.report.period.day The reporting period over which the data is aggregated (in days). integer d
o365.metrics.viva_engage.groups.activity.group.detail.report.refresh_date The date when the report data was last updated. date

Get details about Yammer Device Usage User Counts from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "viva": {
                "engage": {
                    "device": {
                        "usage": {
                            "user": {
                                "counts": {
                                    "other": {
                                        "count": 2
                                    },
                                    "windows_phone": {
                                        "count": 12
                                    },
                                    "web": {
                                        "count": 3
                                    },
                                    "report": {
                                        "date": "2025-01-25",
                                        "period": {
                                            "day": "7"
                                        },
                                        "refresh_date": "2025-01-26"
                                    },
                                    "ipad": {
                                        "count": 1
                                    },
                                    "android_phone": {
                                        "count": 6
                                    },
                                    "iphone": {
                                        "count": 4
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "1017792f-50f9-430c-8888-042d046c690b",
        "ephemeral_id": "9d29bf05-61fe-429a-9179-aa2eaf0a42bc",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-25",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.viva_engage_device_usage_user_counts"
    },
    "elastic_agent": {
        "id": "1017792f-50f9-430c-8888-042d046c690b",
        "version": "8.16.0",
        "snapshot": false
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "type": "linux",
            "family": "",
            "version": "20230201",
            "platform": "wolfi"
        },
        "containerized": false,
        "ip": [
            "192.168.16.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-C0-A8-10-07"
        ],
        "architecture": "aarch64"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T12:11:16Z",
        "dataset": "o365_metrics.viva_engage_device_usage_user_counts"
    },
    "tags": [
        "o365metrics-viva_engage_device_usage_user_counts"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.viva.engage.device.usage.user.counts.android_phone.count The count of users accessing Yammer on Android phones. long gauge
o365.metrics.viva.engage.device.usage.user.counts.ipad.count The count of users accessing Yammer on iPads. long gauge
o365.metrics.viva.engage.device.usage.user.counts.iphone.count The count of users accessing Yammer on iPhones. long gauge
o365.metrics.viva.engage.device.usage.user.counts.other.count The count of users accessing Yammer on devices not listed. long gauge
o365.metrics.viva.engage.device.usage.user.counts.report.date The specific date for which the report data applies. date
o365.metrics.viva.engage.device.usage.user.counts.report.period.day The duration (e.g., 7 days) over which the quota status data is aggregated. integer d
o365.metrics.viva.engage.device.usage.user.counts.report.refresh_date The date when the report data was last updated. date
o365.metrics.viva.engage.device.usage.user.counts.web.count The count of users accessing Yammer via web browsers. long gauge
o365.metrics.viva.engage.device.usage.user.counts.windows_phone.count The count of users accessing Yammer on Windows Phone devices. long gauge

Get details about Teams Device Usage User Counts from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "teams": {
                "device": {
                    "usage": {
                        "user": {
                            "counts": {
                                "windows_phone": {
                                    "count": 2
                                },
                                "web": {
                                    "count": 1
                                },
                                "linux": {
                                    "count": 10
                                },
                                "report": {
                                    "date": "2025-01-21",
                                    "period": {
                                        "day": "7"
                                    },
                                    "refresh_date": "2025-01-21"
                                },
                                "chrome_os": {
                                    "count": 20
                                },
                                "ios": {
                                    "count": 7
                                },
                                "windows": {
                                    "count": 9
                                },
                                "android_phone": {
                                    "count": 5
                                },
                                "mac": {
                                    "count": 2
                                }
                            }
                        }
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "dd15c14a-87a8-447a-9664-47ede1fae11a",
        "ephemeral_id": "cee4f8bf-01b4-425c-8ecb-a2fa49a97348",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-21",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.teams_device_usage_user_counts"
    },
    "elastic_agent": {
        "id": "dd15c14a-87a8-447a-9664-47ede1fae11a",
        "version": "8.16.0",
        "snapshot": false
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "type": "linux",
            "family": "",
            "version": "20230201",
            "platform": "wolfi"
        },
        "ip": [
            "172.19.0.7"
        ],
        "containerized": false,
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-AC-13-00-07"
        ],
        "architecture": "aarch64"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-23T07:00:30Z",
        "dataset": "o365_metrics.teams_device_usage_user_counts"
    },
    "tags": [
        "o365.metrics.teams.device.usage.user.counts"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Unit Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.teams.device.usage.user.counts.android_phone.count The number of active Teams users on Android devices. long gauge
o365.metrics.teams.device.usage.user.counts.chrome_os.count The number of active Teams users on Chrome OS devices. long gauge
o365.metrics.teams.device.usage.user.counts.ios.count The number of active Teams users on iOS devices (iPhone and iPad). long gauge
o365.metrics.teams.device.usage.user.counts.linux.count The number of active Teams users on Linux devices. long gauge
o365.metrics.teams.device.usage.user.counts.mac.count The number of active Teams users on macOS devices. long gauge
o365.metrics.teams.device.usage.user.counts.report.date The specific date for which the report data applies. date
o365.metrics.teams.device.usage.user.counts.report.period.day The duration (e.g., 7 days) over which the report data is aggregated. integer d
o365.metrics.teams.device.usage.user.counts.report.refresh_date The date when the report data was last updated. date
o365.metrics.teams.device.usage.user.counts.web.count The number of active Teams users accessing via web browsers. long gauge
o365.metrics.teams.device.usage.user.counts.windows.count The number of active Teams users on Windows devices. long gauge
o365.metrics.teams.device.usage.user.counts.windows_phone.count The number of active Teams users on Windows Phone devices. long gauge

Get details about Service Health from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "service": {
                "health": {
                    "status": "serviceOperational",
                    "id": "OSDPPlatform",
                    "service": "Microsoft 365 suite"
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "1bd16076-38b3-44b9-980b-eab55ebe95b9",
        "ephemeral_id": "b21b52df-710e-4014-bb1c-d9e60091e1e7",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-07T10:36:47.702Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.service_health"
    },
    "elastic_agent": {
        "id": "1bd16076-38b3-44b9-980b-eab55ebe95b9",
        "version": "8.16.0",
        "snapshot": false
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.15.153.1-microsoft-standard-WSL2",
            "codename": "noble",
            "name": "Ubuntu",
            "type": "linux",
            "family": "debian",
            "version": "24.04.1 LTS (Noble Numbat)",
            "platform": "ubuntu"
        },
        "containerized": true,
        "ip": [
            "172.18.0.7"
        ],
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-AC-12-00-07"
        ],
        "architecture": "x86_64"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-07T10:36:57Z",
        "dataset": "o365_metrics.service_health",
        "original": "{\"service\":\"Microsoft 365 suite\",\"status\":\"serviceOperational\",\"id\":\"OSDPPlatform\"}"
    },
    "tags": [
        "o365.metrics.service.health"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.service.health.id The service id. keyword
o365.metrics.service.health.service The service name. keyword
o365.metrics.service.health.status Show the overall service health status (Eg. serviceOperational, serviceOperational etc.). keyword

Get details about Subscriptions from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "subscriptions": {
                "account_id": "f97aeefc-af85-414d-8ae4-b457f90efc40",
                "account_name": "Account1",
                "applies_to": "User",
                "capability_status": "Enabled",
                "consumed_units": {
                    "count": 14
                },
                "id": "48a80680-7326-48cd-9935-b556b81d3a4e_c7df2760-2c81-4ef7-b578-5b5392b571df",
                "prepaid_units": {
                    "enabled": {
                        "count": 25
                    },
                    "locked_out": {
                        "count": 5
                    },
                    "suspended": {
                        "count": 13
                    },
                    "warning": {
                        "count": 7
                    }
                },
                "service_plans": [
                    {
                        "applies_to": "Company",
                        "provisioning_status": "Success",
                        "service_plan_id": "8c098270-9dd4-4350-9b30-ba4703f3b36b",
                        "service_plan_name": "ADALLOM_S_O365"
                    }
                ],
                "sku_id": "c7df2760-2c81-4ef7-b578-5b5392b571df",
                "sku_part_number": "ENTERPRISEPREMIUM",
                "subscription_ids": [
                    "43d26afe-cb98-48b9-acc4-ae3ef2ac6c51"
                ],
                "surplus_units": {
                    "count": 11
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "ephemeral_id": "08417a8d-9698-4c62-b7dc-e1b048647626",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-29T12:36:44.408Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.subscriptions"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "family": "",
            "type": "linux",
            "version": "20230201",
            "platform": "wolfi"
        },
        "ip": [
            "192.168.48.7"
        ],
        "containerized": false,
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-C0-A8-30-07"
        ],
        "architecture": "aarch64"
    },
    "elastic_agent": {
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-29T12:35:44.48Z",
        "dataset": "o365_metrics.subscriptions",
        "original": "{\"accountName\":\"Account1\",\"accountId\":\"f97aeefc-af85-414d-8ae4-b457f90efc40\",\"appliesTo\":\"User\",\"capabilityStatus\":\"Enabled\",\"consumedUnits\":14,\"id\":\"48a80680-7326-48cd-9935-b556b81d3a4e_c7df2760-2c81-4ef7-b578-5b5392b571df\",\"prepaidUnits\":{\"enabled\":25,\"lockedOut\":5,\"suspended\":13,\"warning\":7},\"servicePlans\":[{\"servicePlanId\":\"8c098270-9dd4-4350-9b30-ba4703f3b36b\",\"servicePlanName\":\"ADALLOM_S_O365\",\"provisioningStatus\":\"Success\",\"appliesTo\":\"Company\"}],\"skuId\":\"c7df2760-2c81-4ef7-b578-5b5392b571df\",\"skuPartNumber\":\"ENTERPRISEPREMIUM\",\"subscriptionIds\":[\"43d26afe-cb98-48b9-acc4-ae3ef2ac6c51\"]}"
    },
    "tags": [
        "o365metrics-subscriptions"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type Metric Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
o365.metrics.subscriptions.account_id Unique identifier for the account. keyword
o365.metrics.subscriptions.account_name Name of the account. text
o365.metrics.subscriptions.applies_to Type of entity the subscription applies to (e.g. User or Company). keyword
o365.metrics.subscriptions.capability_status Status of the capability (e.g. Enabled, Suspended). keyword
o365.metrics.subscriptions.consumed_units.count Number of consumed units. long gauge
o365.metrics.subscriptions.id Unique identifier for the subscription entry. keyword
o365.metrics.subscriptions.prepaid_units.enabled.count Number of enabled prepaid units. long gauge
o365.metrics.subscriptions.prepaid_units.locked_out.count Number of locked-out prepaid units. long gauge
o365.metrics.subscriptions.prepaid_units.suspended.count Number of suspended prepaid units. long gauge
o365.metrics.subscriptions.prepaid_units.warning.count Number of prepaid units in warning state. long gauge
o365.metrics.subscriptions.service_plans.applies_to Type of entity the service plan applies to. keyword
o365.metrics.subscriptions.service_plans.provisioning_status Status of the service plan provisioning. keyword
o365.metrics.subscriptions.service_plans.service_plan_id Unique identifier for the service plan. keyword
o365.metrics.subscriptions.service_plans.service_plan_name Name of the service plan. keyword
o365.metrics.subscriptions.sku_id Unique identifier for the SKU. keyword
o365.metrics.subscriptions.sku_part_number SKU part number. keyword
o365.metrics.subscriptions.subscription_ids Array of subscription IDs. keyword
o365.metrics.subscriptions.surplus_units.count Number of unused units which indicates if you oversubscribed to any SKUs. long

Get details about Teams Call Quality from Microsoft Graph API.

Example
{
    "o365": {
        "metrics": {
            "teams": {
                "call": {
                    "quality": {
                        "callee": {
                            "cpu_cores": {
                                "count": 2
                            },
                            "cpu_name": "Intel(R) Xeon(R) Platinum 8272CL CPU @ 2.60GHz",
                            "cpu_processor_speed": {
                                "mhz": 2594
                            },
                            "feedback": {
                                "rating": "poor",
                                "tokens": {
                                    "distorted_sound": false,
                                    "echo": false,
                                    "interruptions": false,
                                    "low_volume": false,
                                    "no_sound": false,
                                    "noisy": true,
                                    "other_no_sound": false,
                                    "stopped": false
                                }
                            },
                            "identity": {
                                "user": {
                                    "display_name": "Owen Franklin",
                                    "id": "f69e2c00-0000-0000-0000-185e5f5f5d8a",
                                    "tenant_id": "dc368399-474c-4d40-900c-6265431fd81f"
                                }
                            },
                            "name": "machineName_2",
                            "user_agent": {
                                "header_value": "UCCAPI/16.0.12527.20122 OC/16.0.12527.20194 (Skype for Business)",
                                "platform": "windows",
                                "product_family": "skypeForBusiness"
                            }
                        },
                        "caller": {
                            "cpu_cores": {
                                "count": 8
                            },
                            "cpu_name": "AMD EPYC 7452 32-Core Processor",
                            "cpu_processor_speed": {
                                "mhz": 2346
                            },
                            "identity": {
                                "user": {
                                    "display_name": "Abbie Wilkins",
                                    "id": "821809f5-0000-0000-0000-3b5136c0e777",
                                    "tenant_id": "dc368399-474c-4d40-900c-6265431fd81f"
                                }
                            },
                            "name": "machineName_1",
                            "user_agent": {
                                "header_value": "RTCC/7.0.0.0 UCWA/7.0.0.0 AndroidLync/6.25.0.27 (SM-G930U Android 8.0.0)",
                                "platform": "android",
                                "product_family": "skypeForBusiness"
                            }
                        },
                        "end_date_time": "2020-02-25T18:52:46.7640013Z",
                        "id": "e523d2ed-2966-4b6b-925b-754a88034cc5",
                        "is_test": false,
                        "modalities": [
                            "audio"
                        ],
                        "segments": {
                            "callee": {
                                "cpu_cores_count": 2,
                                "cpu_name": "Intel(R) Xeon(R) Platinum 8272CL CPU @ 2.60GHz",
                                "identity": {
                                    "user": {
                                        "display_name": "Owen Franklin",
                                        "id": "f69e2c00-0000-0000-0000-185e5f5f5d8a",
                                        "tenant_id": "dc368399-474c-4d40-900c-6265431fd81f"
                                    }
                                },
                                "name": "machineName_2",
                                "user_agent": {
                                    "header_value": "UCCAPI/16.0.12527.20122 OC/16.0.12527.20194 (Skype for Business)",
                                    "platform": "windows",
                                    "product_family": "skypeForBusiness"
                                }
                            },
                            "caller": {
                                "cpu_cores_count": 8,
                                "cpu_name": "AMD EPYC 7452 32-Core Processor",
                                "cpu_processor_speed_in_mhz": 2346,
                                "identity": {
                                    "user": {
                                        "display_name": "Abbie Wilkins",
                                        "id": "821809f5-0000-0000-0000-3b5136c0e777",
                                        "tenant_id": "dc368399-474c-4d40-900c-6265431fd81f"
                                    }
                                },
                                "name": "machineName_1",
                                "user_agent": {
                                    "header_value": "RTCC/7.0.0.0 UCWA/7.0.0.0 AndroidLync/6.25.0.27 (SM-G930U Android 8.0.0)",
                                    "platform": "android",
                                    "product_family": "skypeForBusiness"
                                }
                            },
                            "end_date_time": "2020-02-25T18:52:46.7640013Z",
                            "id": "e523d2ed-2966-4b6b-925b-754a88034cc5",
                            "media": {
                                "callee_device": {
                                    "capture_device_driver": "Microsoft: 5.0.8638.1100",
                                    "capture_device_name": "Microphone (Microsoft Virtual Audio Device (Simple) (WDM))",
                                    "initial_signal_level_root_mean_square": 146.7885,
                                    "mic_glitch_rate": 143,
                                    "received_noise_level": -86,
                                    "received_signal_level": -14,
                                    "render_device_driver": "Microsoft: 5.0.8638.1100",
                                    "render_device_name": "Speakers (Microsoft Virtual Audio Device (Simple) (WDM))",
                                    "speaker_glitch_rate": 182
                                },
                                "callee_network": {
                                    "bandwidth_low_event_ratio": 0,
                                    "connection_type": "wired",
                                    "delay_event_ratio": 0,
                                    "ip_address": "10.139.0.12",
                                    "link_speed": 4294967295,
                                    "mac_address": "00-00-00-00-00-00-00-00",
                                    "port": 50011,
                                    "received_quality_event_ratio": 0,
                                    "reflexive_ip_address": "127.0.0.2",
                                    "relay_ip_address": "52.114.188.102",
                                    "relay_port": 52810,
                                    "sent_quality_event_ratio": 0.31,
                                    "subnet": "10.139.80.0"
                                },
                                "caller_device": {
                                    "capture_device_name": "Default input device",
                                    "initial_signal_level_root_mean_square": 60.25816,
                                    "mic_glitch_rate": 23,
                                    "received_noise_level": -68,
                                    "received_signal_level": -10,
                                    "render_device_name": "Default output device",
                                    "render_mute_event_ratio": 1,
                                    "render_zero_volume_event_ratio": 1,
                                    "speaker_glitch_rate": 3830
                                },
                                "caller_network": {
                                    "bandwidth_low_event_ratio": 0,
                                    "connection_type": "wifi",
                                    "delay_event_ratio": 0,
                                    "ip_address": "10.150.0.2",
                                    "link_speed": 54000000,
                                    "mac_address": "00-00-00-00-00-00",
                                    "port": 27288,
                                    "received_quality_event_ratio": 0.27,
                                    "reflexive_ip_address": "127.0.0.2",
                                    "relay_ip_address": "52.114.188.32",
                                    "relay_port": 53889,
                                    "sent_quality_event_ratio": 0,
                                    "subnet": "10.150.0.0"
                                },
                                "label": "main-audio",
                                "streams": [
                                    {
                                        "average_audio_network_jitter": "PT0.043S",
                                        "average_bandwidth_estimate": 9965083,
                                        "average_jitter": "PT0.016S",
                                        "average_packet_loss_rate": 0,
                                        "average_round_trip_time": "PT0.061S",
                                        "is_audio_forward_error_correction_used": true,
                                        "max_audio_network_jitter": "PT0.046S",
                                        "max_jitter": "PT0.021S",
                                        "max_packet_loss_rate": 0,
                                        "max_round_trip_time": "PT0.079S",
                                        "packet_utilization": 67,
                                        "stream_direction": "callerToCallee",
                                        "stream_id": "1504545584",
                                        "was_media_bypassed": false
                                    },
                                    {
                                        "average_audio_degradation": 1.160898,
                                        "average_audio_network_jitter": "PT0.266S",
                                        "average_bandwidth_estimate": 15644878,
                                        "average_jitter": "PT0.007S",
                                        "average_packet_loss_rate": 0.01381693,
                                        "average_ratio_of_concealed_samples": 0.06233422,
                                        "average_round_trip_time": "PT0.064S",
                                        "is_audio_forward_error_correction_used": false,
                                        "max_audio_network_jitter": "PT0.474S",
                                        "max_jitter": "PT0.012S",
                                        "max_packet_loss_rate": 0.03738318,
                                        "max_ratio_of_concealed_samples": 0.07192807,
                                        "max_round_trip_time": "PT0.106S",
                                        "packet_utilization": 709,
                                        "stream_direction": "calleeToCaller",
                                        "stream_id": "1785122252",
                                        "was_media_bypassed": false
                                    }
                                ]
                            },
                            "start_date_time": "2020-02-25T18:52:21.2169889Z"
                        },
                        "start_date_time": "2020-02-25T18:52:21.2169889Z"
                    }
                }
            }
        }
    },
    "agent": {
        "name": "docker-fleet-agent",
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "ephemeral_id": "08417a8d-9698-4c62-b7dc-e1b048647626",
        "type": "filebeat",
        "version": "8.16.0"
    },
    "@timestamp": "2025-01-29T12:36:44.408Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "metrics",
        "dataset": "o365_metrics.teams_call_quality"
    },
    "host": {
        "hostname": "docker-fleet-agent",
        "os": {
            "kernel": "5.10.104-linuxkit",
            "name": "Wolfi",
            "family": "",
            "type": "linux",
            "version": "20230201",
            "platform": "wolfi"
        },
        "ip": [
            "192.168.48.7"
        ],
        "containerized": false,
        "name": "docker-fleet-agent",
        "mac": [
            "02-42-C0-A8-30-07"
        ],
        "architecture": "aarch64"
    },
    "elastic_agent": {
        "id": "abf38fab-f7b6-4e1c-a3b3-a70a64f9e5db",
        "version": "8.16.0",
        "snapshot": false
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-29T12:35:44.48Z",
        "dataset": "o365_metrics.teams_call_quality",
        "original": "{ \"id\": \"e523d2ed-2966-4b6b-925b-754a88034cc5\", \"modalities\": [ \"audio\" ], \"startDateTime\": \"2020-02-25T18:52:21.2169889Z\", \"endDateTime\": \"2020-02-25T18:52:46.7640013Z\", \"isTest\": false, \"caller\": { \"@odata.type\": \"#microsoft.graph.callRecords.participantEndpoint\", \"name\": \"machineName_1\", \"cpuName\": \"AMD EPYC 7452 32-Core Processor\", \"cpuCoresCount\": 8, \"cpuProcessorSpeedInMhz\": 2346, \"userAgent\": { \"@odata.type\": \"#microsoft.graph.callRecords.clientUserAgent\", \"headerValue\": \"RTCC\/7.0.0.0 UCWA\/7.0.0.0 AndroidLync\/6.25.0.27 (SM-G930U Android 8.0.0)\", \"platform\": \"android\", \"productFamily\": \"skypeForBusiness\" }, \"identity\": { \"@odata.type\": \"#microsoft.graph.identitySet\", \"user\": { \"id\": \"821809f5-0000-0000-0000-3b5136c0e777\", \"displayName\": \"Abbie Wilkins\", \"tenantId\": \"dc368399-474c-4d40-900c-6265431fd81f\" } } }, \"callee\": { \"@odata.type\": \"#microsoft.graph.callRecords.participantEndpoint\", \"name\": \"machineName_2\", \"cpuName\": \"Intel(R) Xeon(R) Platinum 8272CL CPU @ 2.60GHz\", \"cpuCoresCount\": 2, \"cpuProcessorSpeedInMhz\": 2594, \"userAgent\": { \"@odata.type\": \"#microsoft.graph.callRecords.clientUserAgent\", \"headerValue\": \"UCCAPI\/16.0.12527.20122 OC\/16.0.12527.20194 (Skype for Business)\", \"platform\": \"windows\", \"productFamily\": \"skypeForBusiness\" }, \"identity\": { \"user\": { \"id\": \"f69e2c00-0000-0000-0000-185e5f5f5d8a\", \"displayName\": \"Owen Franklin\", \"tenantId\": \"dc368399-474c-4d40-900c-6265431fd81f\" } }, \"feedback\": { \"rating\": \"poor\", \"tokens\": { \"NoSound\": false, \"OtherNoSound\": false, \"Echo\": false, \"Noisy\": true, \"LowVolume\": false, \"Stopped\": false, \"DistortedSound\": false, \"Interruptions\": false } } }, \"segments\": [ { \"startDateTime\": \"2020-02-25T18:52:21.2169889Z\", \"endDateTime\": \"2020-02-25T18:52:46.7640013Z\", \"id\": \"e523d2ed-2966-4b6b-925b-754a88034cc5\", \"caller\": { \"@odata.type\": \"#microsoft.graph.callRecords.participantEndpoint\", \"name\": \"machineName_1\", \"cpuName\": \"AMD EPYC 7452 32-Core Processor\", \"cpuCoresCount\": 8, \"cpuProcessorSpeedInMhz\": 2346, \"userAgent\": { \"@odata.type\": \"#microsoft.graph.callRecords.clientUserAgent\", \"headerValue\": \"RTCC\/7.0.0.0 UCWA\/7.0.0.0 AndroidLync\/6.25.0.27 (SM-G930U Android 8.0.0)\", \"platform\": \"android\", \"productFamily\": \"skypeForBusiness\" }, \"identity\": { \"user\": { \"id\": \"821809f5-0000-0000-0000-3b5136c0e777\", \"displayName\": \"Abbie Wilkins\", \"tenantId\": \"dc368399-474c-4d40-900c-6265431fd81f\" } } }, \"callee\": { \"@odata.type\": \"#microsoft.graph.callRecords.participantEndpoint\", \"name\": \"machineName_2\", \"cpuName\": \"Intel(R) Xeon(R) Platinum 8272CL CPU @ 2.60GHz\", \"cpuCoresCount\": 2, \"userAgent\": { \"@odata.type\": \"#microsoft.graph.callRecords.clientUserAgent\", \"headerValue\": \"UCCAPI\/16.0.12527.20122 OC\/16.0.12527.20194 (Skype for Business)\", \"platform\": \"windows\", \"productFamily\": \"skypeForBusiness\" }, \"identity\": { \"user\": { \"id\": \"f69e2c00-0000-0000-0000-185e5f5f5d8a\", \"displayName\": \"Owen Franklin\", \"tenantId\": \"dc368399-474c-4d40-900c-6265431fd81f\" } } }, \"media\": [ { \"label\": \"main-audio\", \"callerNetwork\": { \"ipAddress\": \"10.150.0.2\", \"subnet\": \"10.150.0.0\", \"linkSpeed\": 54000000, \"connectionType\": \"wifi\", \"port\": 27288, \"reflexiveIPAddress\": \"127.0.0.2\", \"relayIPAddress\": \"52.114.188.32\", \"relayPort\": 53889, \"macAddress\": \"00-00-00-00-00-00\", \"dnsSuffix\": null, \"sentQualityEventRatio\": 0, \"receivedQualityEventRatio\": 0.27, \"delayEventRatio\": 0, \"bandwidthLowEventRatio\": 0 }, \"calleeNetwork\": { \"ipAddress\": \"10.139.0.12\", \"subnet\": \"10.139.80.0\", \"linkSpeed\": 4294967295, \"connectionType\": \"wired\", \"port\": 50011, \"reflexiveIPAddress\": \"127.0.0.2\", \"relayIPAddress\": \"52.114.188.102\", \"relayPort\": 52810, \"macAddress\": \"00-00-00-00-00-00-00-00\", \"dnsSuffix\": null, \"sentQualityEventRatio\": 0.31, \"receivedQualityEventRatio\": 0, \"delayEventRatio\": 0, \"bandwidthLowEventRatio\": 0 }, \"callerDevice\": { \"captureDeviceName\": \"Default input device\", \"renderDeviceName\": \"Default output device\", \"receivedSignalLevel\": -10, \"receivedNoiseLevel\": -68, \"initialSignalLevelRootMeanSquare\": 60.25816, \"renderZeroVolumeEventRatio\": 1, \"renderMuteEventRatio\": 1, \"micGlitchRate\": 23, \"speakerGlitchRate\": 3830 }, \"calleeDevice\": { \"captureDeviceName\": \"Microphone (Microsoft Virtual Audio Device (Simple) (WDM))\", \"captureDeviceDriver\": \"Microsoft: 5.0.8638.1100\", \"renderDeviceName\": \"Speakers (Microsoft Virtual Audio Device (Simple) (WDM))\", \"renderDeviceDriver\": \"Microsoft: 5.0.8638.1100\", \"receivedSignalLevel\": -14, \"receivedNoiseLevel\": -86, \"initialSignalLevelRootMeanSquare\": 146.7885, \"micGlitchRate\": 143, \"speakerGlitchRate\": 182 }, \"streams\": [ { \"streamId\": \"1504545584\", \"streamDirection\": \"callerToCallee\", \"averageAudioDegradation\": null, \"averageJitter\": \"PT0.016S\", \"maxJitter\": \"PT0.021S\", \"averagePacketLossRate\": 0, \"maxPacketLossRate\": 0, \"averageRatioOfConcealedSamples\": null, \"maxRatioOfConcealedSamples\": null, \"averageRoundTripTime\": \"PT0.061S\", \"maxRoundTripTime\": \"PT0.079S\", \"packetUtilization\": 67, \"averageBandwidthEstimate\": 9965083, \"wasMediaBypassed\": false, \"averageAudioNetworkJitter\": \"PT0.043S\", \"maxAudioNetworkJitter\": \"PT0.046S\", \"rmsFreezeDuration\": null, \"averageFreezeDuration\": null, \"isAudioForwardErrorCorrectionUsed\": true }, { \"streamId\": \"1785122252\", \"streamDirection\": \"calleeToCaller\", \"averageAudioDegradation\": 1.160898, \"averageJitter\": \"PT0.007S\", \"maxJitter\": \"PT0.012S\", \"averagePacketLossRate\": 0.01381693, \"maxPacketLossRate\": 0.03738318, \"averageRatioOfConcealedSamples\": 0.06233422, \"maxRatioOfConcealedSamples\": 0.07192807, \"averageRoundTripTime\": \"PT0.064S\", \"maxRoundTripTime\": \"PT0.106S\", \"packetUtilization\": 709, \"averageBandwidthEstimate\": 15644878, \"wasMediaBypassed\": false, \"averageAudioNetworkJitter\": \"PT0.266S\", \"maxAudioNetworkJitter\": \"PT0.474S\", \"rmsFreezeDuration\": null, \"averageFreezeDuration\": null, \"isAudioForwardErrorCorrectionUsed\": false } ] } ] } ] }"
    },
    "tags": [
        "o365metrics-teams.call.quality"
    ]
}

ECS Field Reference

Please refer to the following document for detailed information on ECS fields.

Exported fields
Field Description Type
@timestamp Event timestamp. date
cloud.image.id Image ID for the cloud instance. keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
host.containerized If the host is a container. boolean
host.os.build OS build information. keyword
host.os.codename OS codename, if any. keyword
input.type Type of Filebeat input. keyword
o365.metrics.teams.call.quality.callee.cpu_cores.count The number of CPU cores on the callee's device long
o365.metrics.teams.call.quality.callee.cpu_name The name of the CPU on the callee's device keyword
o365.metrics.teams.call.quality.callee.cpu_processor_speed.mhz The processor speed in MHz on the callee's CPU long
o365.metrics.teams.call.quality.callee.feedback.rating The rating the callee gave for the call quality keyword
o365.metrics.teams.call.quality.callee.feedback.tokens.distorted_sound Whether distorted sound was reported by the callee boolean
o365.metrics.teams.call.quality.callee.feedback.tokens.echo Whether echo was reported by the callee boolean
o365.metrics.teams.call.quality.callee.feedback.tokens.interruptions Whether interruptions were reported by the callee boolean
o365.metrics.teams.call.quality.callee.feedback.tokens.low_volume Whether low volume was reported by the callee boolean
o365.metrics.teams.call.quality.callee.feedback.tokens.no_sound Whether no sound was reported by the callee boolean
o365.metrics.teams.call.quality.callee.feedback.tokens.noisy Whether background noise was reported by the callee boolean
o365.metrics.teams.call.quality.callee.feedback.tokens.other_no_sound Whether other no sound issues were reported by the callee boolean
o365.metrics.teams.call.quality.callee.feedback.tokens.stopped Whether the call was stopped prematurely by the callee boolean
o365.metrics.teams.call.quality.callee.identity.user.display_name The display name of the callee keyword
o365.metrics.teams.call.quality.callee.identity.user.id The unique user ID for the callee keyword
o365.metrics.teams.call.quality.callee.identity.user.tenant_id The tenant ID of the callee's organization keyword
o365.metrics.teams.call.quality.callee.name The name of the callee keyword
o365.metrics.teams.call.quality.callee.user_agent.header_value The header value of the user agent keyword
o365.metrics.teams.call.quality.callee.user_agent.platform The platform of the callee (e.g., Windows, macOS) keyword
o365.metrics.teams.call.quality.callee.user_agent.product_family The product family of the callee (e.g., Teams, Skype) keyword
o365.metrics.teams.call.quality.caller.cpu_cores.count The number of CPU cores on the caller's device long
o365.metrics.teams.call.quality.caller.cpu_name The name of the CPU on the caller's device keyword
o365.metrics.teams.call.quality.caller.cpu_processor_speed.mhz The processor speed in MHz on the caller's CPU long
o365.metrics.teams.call.quality.caller.identity.user.display_name The display name of the caller keyword
o365.metrics.teams.call.quality.caller.identity.user.id The unique user ID for the caller keyword
o365.metrics.teams.call.quality.caller.identity.user.tenant_id The tenant ID of the caller's organization keyword
o365.metrics.teams.call.quality.caller.name The name of the caller keyword
o365.metrics.teams.call.quality.caller.user_agent.header_value The header value of the user agent keyword
o365.metrics.teams.call.quality.caller.user_agent.platform The platform of the caller (e.g., Windows, macOS) keyword
o365.metrics.teams.call.quality.caller.user_agent.product_family The product family of the caller (e.g., Teams, Skype) keyword
o365.metrics.teams.call.quality.end_date_time The end date and time of the call date
o365.metrics.teams.call.quality.id Unique identifier for the call quality record keyword
o365.metrics.teams.call.quality.is_test Indicates whether the call is a test call boolean
o365.metrics.teams.call.quality.modalities Types of communication used in the call (audio, video, etc.) keyword
o365.metrics.teams.call.quality.segments.callee.cpu_cores_count The number of CPU cores on the callee's device long
o365.metrics.teams.call.quality.segments.callee.cpu_name The name of the CPU on the callee's device keyword
o365.metrics.teams.call.quality.segments.callee.cpu_processor_speed_in_mhz The processor speed in MHz on the callee's CPU long
o365.metrics.teams.call.quality.segments.callee.feedback.rating The rating the callee gave for the call quality keyword
o365.metrics.teams.call.quality.segments.callee.feedback.tokens.distorted_sound Whether distorted sound was reported by the callee boolean
o365.metrics.teams.call.quality.segments.callee.feedback.tokens.echo Whether echo was reported by the callee boolean
o365.metrics.teams.call.quality.segments.callee.feedback.tokens.interruptions Whether interruptions were reported by the callee boolean
o365.metrics.teams.call.quality.segments.callee.feedback.tokens.low_volume Whether low volume was reported by the callee boolean
o365.metrics.teams.call.quality.segments.callee.feedback.tokens.no_sound Whether no sound was reported by the callee boolean
o365.metrics.teams.call.quality.segments.callee.feedback.tokens.noisy Whether background noise was reported by the callee boolean
o365.metrics.teams.call.quality.segments.callee.feedback.tokens.other_no_sound Whether other no sound issues were reported by the callee boolean
o365.metrics.teams.call.quality.segments.callee.feedback.tokens.stopped Whether the call was stopped prematurely by the callee boolean
o365.metrics.teams.call.quality.segments.callee.identity.user.display_name The display name of the callee keyword
o365.metrics.teams.call.quality.segments.callee.identity.user.id The unique user ID for the callee keyword
o365.metrics.teams.call.quality.segments.callee.identity.user.tenant_id The tenant ID of the callee's organization keyword
o365.metrics.teams.call.quality.segments.callee.name The name of the callee keyword
o365.metrics.teams.call.quality.segments.callee.user_agent.header_value The header value of the user agent keyword
o365.metrics.teams.call.quality.segments.callee.user_agent.platform The platform of the callee (e.g., Windows, macOS) keyword
o365.metrics.teams.call.quality.segments.callee.user_agent.product_family The product family of the callee (e.g., Teams, Skype) keyword
o365.metrics.teams.call.quality.segments.caller.cpu_cores_count The number of CPU cores on the caller's device long
o365.metrics.teams.call.quality.segments.caller.cpu_name The name of the CPU on the caller's device keyword
o365.metrics.teams.call.quality.segments.caller.cpu_processor_speed_in_mhz The processor speed in MHz on the caller's CPU long
o365.metrics.teams.call.quality.segments.caller.identity.user.display_name The display name of the caller keyword
o365.metrics.teams.call.quality.segments.caller.identity.user.id The unique user ID for the caller keyword
o365.metrics.teams.call.quality.segments.caller.identity.user.tenant_id The tenant ID of the caller's organization keyword
o365.metrics.teams.call.quality.segments.caller.name The name of the caller keyword
o365.metrics.teams.call.quality.segments.caller.user_agent.header_value The header value of the user agent keyword
o365.metrics.teams.call.quality.segments.caller.user_agent.platform The platform of the caller (e.g., Windows, macOS) keyword
o365.metrics.teams.call.quality.segments.caller.user_agent.product_family The product family of the caller (e.g., Teams, Skype) keyword
o365.metrics.teams.call.quality.segments.end_date_time End time of the segment date
o365.metrics.teams.call.quality.segments.id Unique identifier for the segment keyword
o365.metrics.teams.call.quality.segments.media.callee_device.capture_device_driver The name of the callee's capture device driver keyword
o365.metrics.teams.call.quality.segments.media.callee_device.capture_device_name The name of the callee's capture device keyword
o365.metrics.teams.call.quality.segments.media.callee_device.initial_signal_level_root_mean_square Initial RMS of the callee's signal level float
o365.metrics.teams.call.quality.segments.media.callee_device.mic_glitch_rate The glitch rate for the callee's microphone float
o365.metrics.teams.call.quality.segments.media.callee_device.received_noise_level The received noise level on the callee's device float
o365.metrics.teams.call.quality.segments.media.callee_device.received_signal_level The received signal level on the callee's device float
o365.metrics.teams.call.quality.segments.media.callee_device.render_device_driver The name of the callee's render device driver keyword
o365.metrics.teams.call.quality.segments.media.callee_device.render_device_name The name of the callee's render device keyword
o365.metrics.teams.call.quality.segments.media.callee_device.speaker_glitch_rate The glitch rate for the callee's speaker float
o365.metrics.teams.call.quality.segments.media.callee_network.bandwidth_low_event_ratio The event ratio of low bandwidth for the callee's network float
o365.metrics.teams.call.quality.segments.media.callee_network.connection_type Type of connection used (e.g., wifi, wired) keyword
o365.metrics.teams.call.quality.segments.media.callee_network.delay_event_ratio The event ratio of delay in the callee's network float
o365.metrics.teams.call.quality.segments.media.callee_network.dns_suffix DNS suffix for the callee's network keyword
o365.metrics.teams.call.quality.segments.media.callee_network.ip_address IP address of the callee's network keyword
o365.metrics.teams.call.quality.segments.media.callee_network.link_speed Link speed of the callee's network connection long
o365.metrics.teams.call.quality.segments.media.callee_network.mac_address MAC address of the callee's device keyword
o365.metrics.teams.call.quality.segments.media.callee_network.port Port used for the connection long
o365.metrics.teams.call.quality.segments.media.callee_network.received_quality_event_ratio Quality event ratio related to the received network quality float
o365.metrics.teams.call.quality.segments.media.callee_network.reflexive_ip_address Reflexive IP address for the callee's network keyword
o365.metrics.teams.call.quality.segments.media.callee_network.relay_ip_address Relay IP address for the callee's network keyword
o365.metrics.teams.call.quality.segments.media.callee_network.relay_port Relay port long
o365.metrics.teams.call.quality.segments.media.callee_network.sent_quality_event_ratio Quality event ratio related to the callee's network float
o365.metrics.teams.call.quality.segments.media.callee_network.subnet Subnet of the callee's network keyword
o365.metrics.teams.call.quality.segments.media.caller_device.capture_device_name The name of the caller's capture device keyword
o365.metrics.teams.call.quality.segments.media.caller_device.initial_signal_level_root_mean_square Initial RMS of the caller's signal level float
o365.metrics.teams.call.quality.segments.media.caller_device.mic_glitch_rate The glitch rate for the caller's microphone float
o365.metrics.teams.call.quality.segments.media.caller_device.received_noise_level The received noise level on the caller's device float
o365.metrics.teams.call.quality.segments.media.caller_device.received_signal_level The received signal level on the caller's device float
o365.metrics.teams.call.quality.segments.media.caller_device.render_device_name The name of the caller's render device keyword
o365.metrics.teams.call.quality.segments.media.caller_device.render_mute_event_ratio Ratio of mute events during rendering float
o365.metrics.teams.call.quality.segments.media.caller_device.render_zero_volume_event_ratio Ratio of zero volume events during rendering float
o365.metrics.teams.call.quality.segments.media.caller_device.speaker_glitch_rate The glitch rate for the caller's speaker float
o365.metrics.teams.call.quality.segments.media.caller_network.bandwidth_low_event_ratio The event ratio of low bandwidth for the caller's network float
o365.metrics.teams.call.quality.segments.media.caller_network.connection_type Type of connection used (e.g., wifi, wired) keyword
o365.metrics.teams.call.quality.segments.media.caller_network.delay_event_ratio The event ratio of delay in the caller's network float
o365.metrics.teams.call.quality.segments.media.caller_network.dns_suffix DNS suffix for the caller's network keyword
o365.metrics.teams.call.quality.segments.media.caller_network.ip_address IP address of the caller's network keyword
o365.metrics.teams.call.quality.segments.media.caller_network.link_speed Link speed of the caller's network connection long
o365.metrics.teams.call.quality.segments.media.caller_network.mac_address MAC address of the caller's device keyword
o365.metrics.teams.call.quality.segments.media.caller_network.port Port used for the connection long
o365.metrics.teams.call.quality.segments.media.caller_network.received_quality_event_ratio Quality event ratio related to the received network quality float
o365.metrics.teams.call.quality.segments.media.caller_network.reflexive_ip_address Reflexive IP address for the caller's network keyword
o365.metrics.teams.call.quality.segments.media.caller_network.relay_ip_address Relay IP address for the caller's network keyword
o365.metrics.teams.call.quality.segments.media.caller_network.relay_port Relay port long
o365.metrics.teams.call.quality.segments.media.caller_network.sent_quality_event_ratio Quality event ratio related to the caller's network float
o365.metrics.teams.call.quality.segments.media.caller_network.subnet Subnet of the caller's network keyword
o365.metrics.teams.call.quality.segments.media.label The label for the media stream (e.g., "main-audio") keyword
o365.metrics.teams.call.quality.segments.media.streams.average_audio_degradation Average audio degradation metric float
o365.metrics.teams.call.quality.segments.media.streams.average_audio_network_jitter Average audio network jitter in milliseconds keyword
o365.metrics.teams.call.quality.segments.media.streams.average_bandwidth_estimate Average bandwidth estimate in bits per second float
o365.metrics.teams.call.quality.segments.media.streams.average_jitter Average jitter in milliseconds keyword
o365.metrics.teams.call.quality.segments.media.streams.average_packet_loss_rate Average rate of packet loss float
o365.metrics.teams.call.quality.segments.media.streams.average_ratio_of_concealed_samples Average ratio of concealed samples float
o365.metrics.teams.call.quality.segments.media.streams.average_round_trip_time Average round trip time in milliseconds keyword
o365.metrics.teams.call.quality.segments.media.streams.is_audio_forward_error_correction_used Indicates if audio forward error correction was used boolean
o365.metrics.teams.call.quality.segments.media.streams.max_audio_network_jitter Maximum audio network jitter in milliseconds keyword
o365.metrics.teams.call.quality.segments.media.streams.max_jitter Maximum jitter in milliseconds keyword
o365.metrics.teams.call.quality.segments.media.streams.max_packet_loss_rate Maximum rate of packet loss float
o365.metrics.teams.call.quality.segments.media.streams.max_ratio_of_concealed_samples float
o365.metrics.teams.call.quality.segments.media.streams.max_round_trip_time Maximum round trip time in milliseconds keyword
o365.metrics.teams.call.quality.segments.media.streams.packet_utilization Utilization rate of packets float
o365.metrics.teams.call.quality.segments.media.streams.stream_direction Direction of the media stream keyword
o365.metrics.teams.call.quality.segments.media.streams.stream_id The stream ID keyword
o365.metrics.teams.call.quality.segments.media.streams.was_media_bypassed Indicates if media was bypassed boolean
o365.metrics.teams.call.quality.segments.quality_score Quality score of the call segment float
o365.metrics.teams.call.quality.segments.start_date_time Start time of the segment date
o365.metrics.teams.call.quality.start_date_time The start date and time of the call date
Changelog
Version Details Kibana version(s)
0.6.6 Enhancement (View pull request)
Add support for configuring resource parameters, such as rate_limit, retry, and others.		 —
0.6.5 Enhancement (View pull request)
Convert nested fields to group for teams_call quality and subscriptions data streams.		 —
0.6.4 Enhancement (View pull request)
Add metric types for all data streams.		 —
0.6.3 Bug fix (View pull request)
Fix pipeline for sharepoint_site_usage_detail data stream.		 —
0.6.2 Bug fix (View pull request)
Fix cel code for onedrive_usage_storage data stream.		 —
0.6.1 Enhancement (View pull request)
Add cel failure check to all data streams.		 —
0.6.0 Enhancement (View pull request)
Add support for Kibana 9.0.0.		 —
0.5.0 Enhancement (View pull request)
Add subscriptions data stream.

Enhancement (View pull request)
Add teams_call_quality data stream.		 —
0.4.0 Enhancement (View pull request)
Add teams_device_usage_user_counts data stream.

Enhancement (View pull request)
Add service_health data stream.

Bug fix (View pull request)
Split data stream mailbox_usage into mailbox_usage_detail and mailbox_usage_quota_status_mailbox_counts, and refactor other datastreams.

Bug fix (View pull request)
Split sharepoint_site_usage and onedrive_usage by data stream and quality check.		 —
0.3.0 Enhancement (View pull request)
Add groups_activity_group_detail, onedrive_usage_account_detail, teams_user_activity_user_detail, and viva_engage_groups_activity_group_detail data streams.		 —
0.2.0 Enhancement (View pull request)
Add teams_user_activity_user_counts data stream.

Enhancement (View pull request)
Add yammer_device_usage data stream.

Enhancement (View pull request)
Add active_users data stream.

Enhancement (View pull request)
Add mailbox_quota_staus and outlook_app_usage data streams.

Enhancement (View pull request)
Add sharepoint_site_usage data stream.		 —
0.1.2 Enhancement (View pull request)
Add onedrive_usage data stream.		 —
0.1.0 Enhancement (View pull request)
Initial draft of the o365_metrics package with the outlook_activity data stream.		 —
