OpenAI
Version 1.1.0 (View all)
Compatible Kibana version(s) 8.16.3 or higher
9.0.0 or higher
Supported Serverless project types
What's this?		 Security
Observability
Subscription level
What's this?		 Basic
Level of support
What's this?		 Elastic

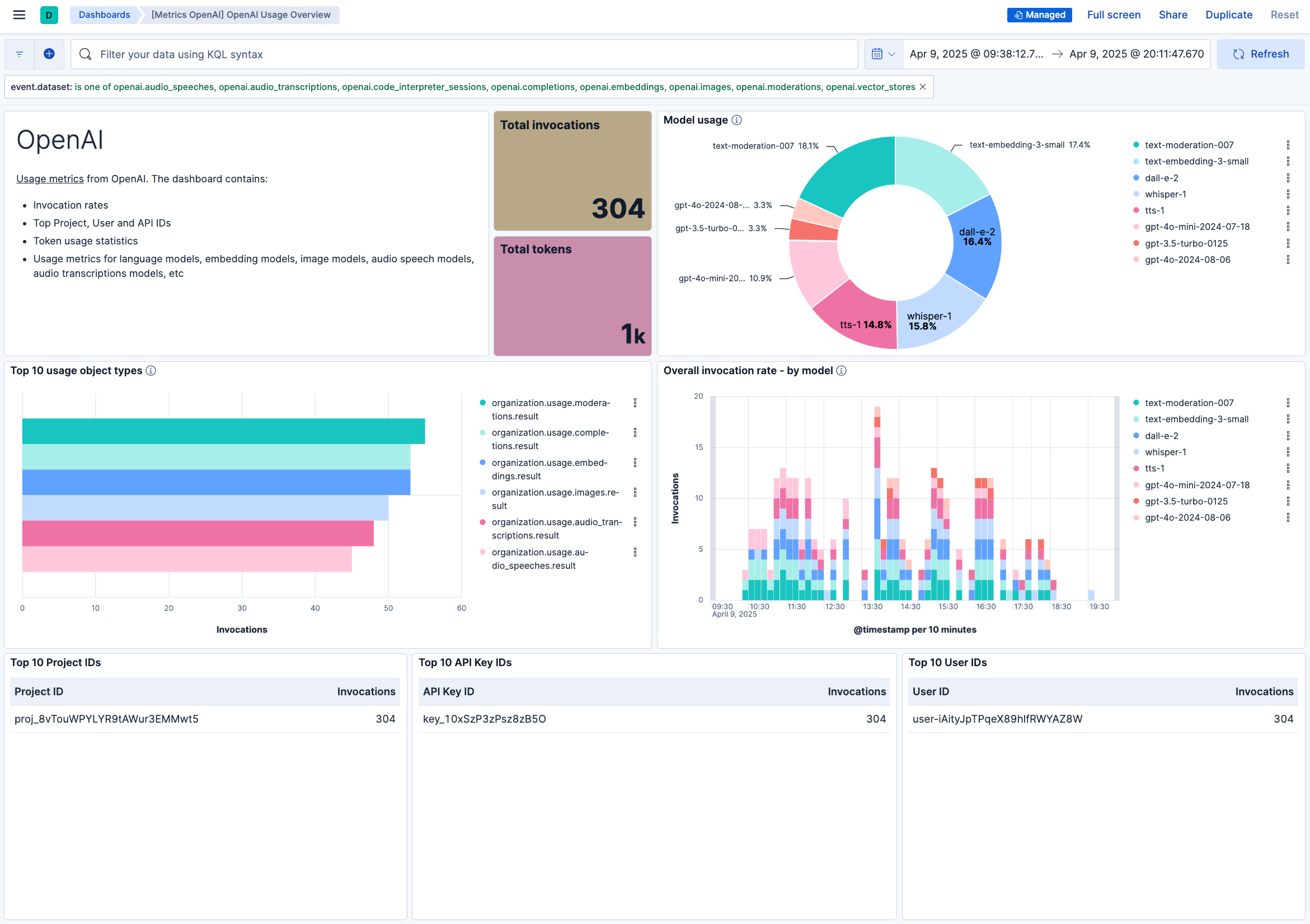

The OpenAI integration allows you to monitor OpenAI API usage metrics. OpenAI is an AI research and deployment company that offers API platform for their industry-leading foundation models.

With the OpenAI integration, you can track API usage metrics across their models, as well as for vector store and code interpreter. You will use Kibana to visualize your data, create alerts if usage limits are approaching, and view metrics when you troubleshoot issues. For example, you can track token usage and API calls per model.

The OpenAI integration leverages the OpenAI Usage API to collect detailed usage metrics. The Usage API delivers comprehensive insights into your API activity, helping you understand and optimize your organization's OpenAI API usage.

The OpenAI integration collects the following data streams:

  • audio_speeches: Collects audio speeches usage metrics.
  • audio_transcriptions: Collects audio transcriptions usage metrics.
  • code_interpreter_sessions: Collects code interpreter sessions usage metrics.
  • completions: Collects completions usage metrics.
  • embeddings: Collects embeddings usage metrics.

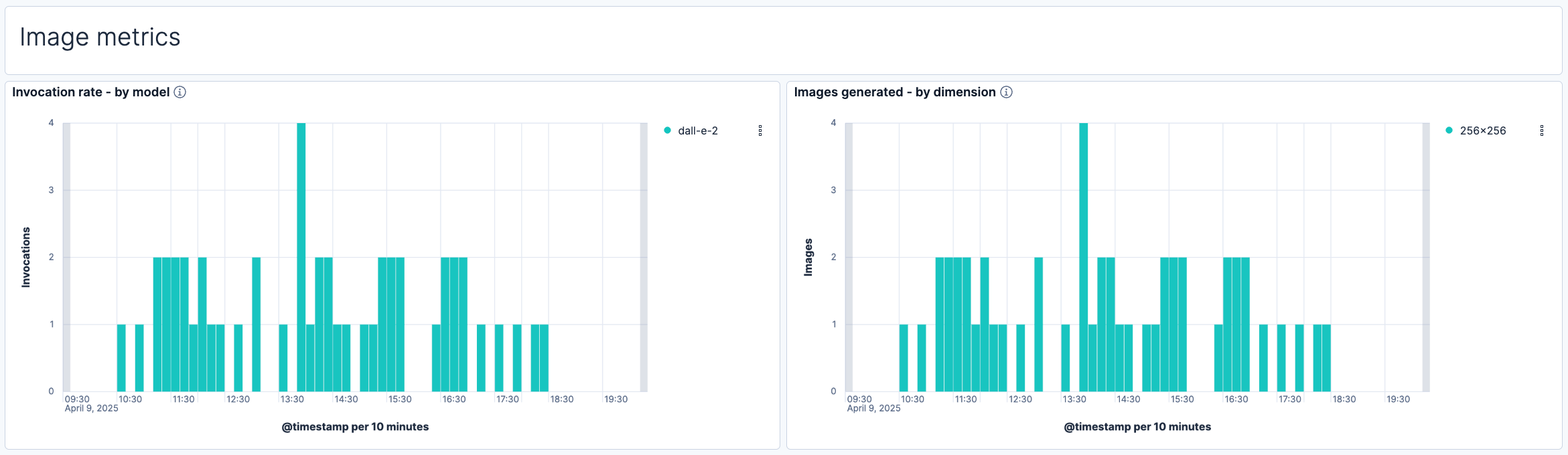

  • images: Collects images usage metrics.
  • moderations: Collects moderations usage metrics.
  • vector_stores: Collects vector stores usage metrics.
Note

Users can view OpenAI metrics in the logs-* index pattern using Kibana Discover.

You need Elasticsearch for storing and searching your data and Kibana for visualizing and managing it.

You need an OpenAI account with a valid Admin key for programmatic access to OpenAI Usage API.

For step-by-step instructions on how to set up an integration, see the Getting started guide.

To generate an Admin key, please generate a key or use an existing one from the Admin keys page. Use the Admin key to configure the OpenAI integration.

Among the configuration options for the OpenAI integration, the following settings are particularly relevant: "Initial interval" and "Bucket width".

  • Controls the historical data collection window at startup
  • Default value: 24 hours (24h)
  • Purpose: Loads historical context when you first set up the integration

A "bucket" refers to a time interval where OpenAI usage data is grouped together for reporting purposes. For example, with a 1-minute bucket width, usage metrics are aggregated minute by minute. With a 1-hour bucket width, all activity during that hour is consolidated into a single bucket. The bucket width determines your data's granularity and level of detail in your usage reporting.

  • Controls the time-based aggregation of metrics
  • Default: 1m (1 minute)
  • Options: 1m (1 minute), 1h (1 hour), 1d (1 day)
  • Affects API request frequency and data resolution
  • 1m buckets provide the highest resolution metrics, with data arriving in near real-time (1-minute delay)
  • 1h buckets aggregate hourly, with data arriving less frequently (1-hour delay)
  • 1d buckets aggregate daily, with data arriving once per day (24-hour delay)

Data granularity relationship: 1m > 1h > 1d

Bucket width choice affects storage usage (in Elasticsearch) and data resolution:

  • 1m: Maximum granularity, higher storage needs, ideal for detailed analysis.
  • 1h: Medium granularity, moderate storage needs, good for hourly patterns.
  • 1d: Minimum granularity, lowest storage needs, suitable for long-term analysis.

Example: For 100 API calls to a particular model per hour:

  • 1m buckets: Up to 100 documents
  • 1h buckets: 1 aggregated document
  • 1d buckets: 1 daily document

"Bucket width" and "Initial interval" directly affect API request frequency. When using a 1-minute bucket width, it's strongly recommended to set the "Initial interval" to a shorter duration, optimally 1-day, to ensure smooth performance. While our extensive testing demonstrates excellent results with a 6-month initial interval paired with a 1-day bucket width, the same level of success isn't achievable with 1-minute or 1-hour bucket widths. This is because the OpenAI Usage API returns different bucket quantities based on width (60 buckets per call for 1-minute, 24 for 1-hour, and 7 for 1-day widths). To achieve the best results when gathering historical data over long periods, using 1-day bucket width is the most effective method, ensuring a balance between data granularity and API limitations.

For optimal results with historical data, use 1-day bucket widths for long periods (15+ days), 1-hour for medium periods (1-15 days), and 1-minute only for the most recent 24 hours of data.

With default settings (Interval: 5m, Bucket width: 1m, Initial interval: 24h), the OpenAI integration follows this collection pattern:

  1. Starts collection from (current_time - initial_interval)
  2. Collects data up to (current_time - bucket_width)
  3. Excludes incomplete current bucket for data accuracy and wait for bucket completion
  4. Runs every 5 minutes by default (configurable)
  5. From second collection, start from end of previous bucket timestamp and collect up to (current_time - bucket_width)

With default settings (Interval: 5m, Bucket width: 1m, Initial interval: 24h):

The integration starts at 10:00 AM, collects data from 10:00 AM the previous day, and continues until 9:59 AM the current day. The next collection starts at 10:05 AM, collecting from the 10:00 AM bucket to the 10:04 AM bucket, as the "Interval" is 5 minutes.

ECS Field Reference

Refer to this document for detailed information on ECS fields.

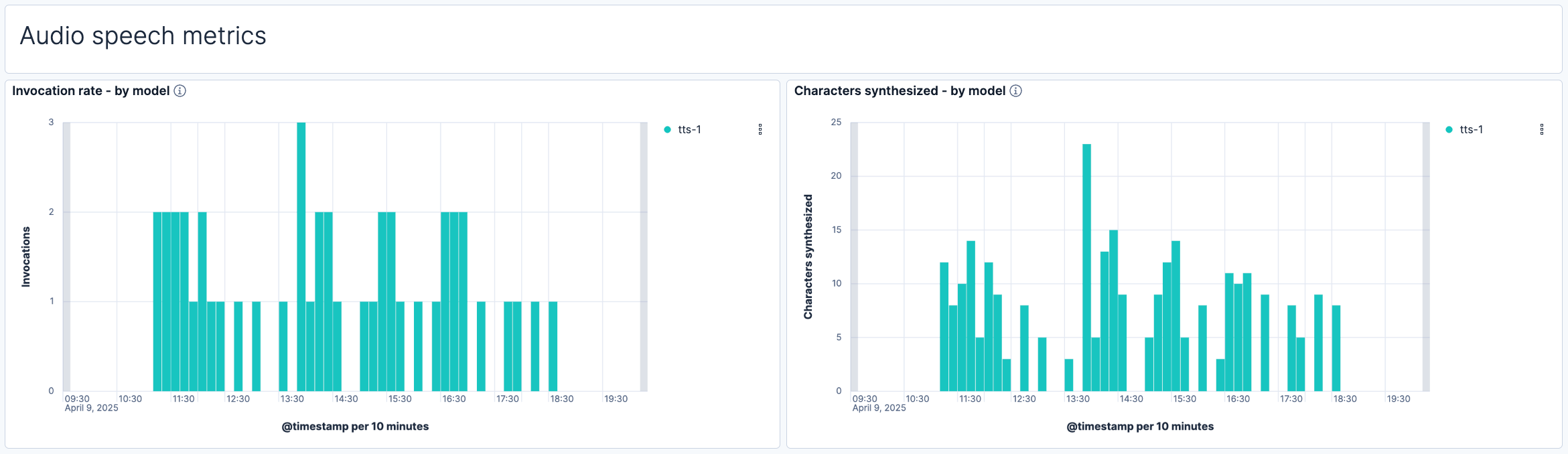

The audio_speeches data stream captures audio speeches usage metrics.

Example
{
    "openai": {
        "audio_speeches": {
            "characters": 45
        },
        "base": {
            "start_time": "2024-09-05T00:00:00.000Z",
            "num_model_requests": 1,
            "project_id": "proj_dummy",
            "user_id": "user-dummy",
            "end_time": "2024-09-06T00:00:00.000Z",
            "model": "tts-1",
            "api_key_id": "key_dummy",
            "usage_object_type": "organization.usage.audio_speeches.result"
        }
    },
    "@timestamp": "2024-09-05T00:00:00.000Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "logs",
        "dataset": "openai.audio_speeches"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T21:56:19Z",
        "created": "2025-01-28T21:56:18.550Z",
        "kind": "metric",
        "dataset": "openai.audio_speeches"
    },
    "tags": [
        "forwarded",
        "openai-audio-speeches"
    ]
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
openai.audio_speeches.characters Number of characters processed long
openai.base.api_key_id Identifier for the API key used keyword
openai.base.end_time End timestamp of the usage bucket date
openai.base.model Name of the OpenAI model used keyword
openai.base.num_model_requests Number of requests made to the model long
openai.base.project_id Identifier of the project keyword
openai.base.start_time Start timestamp of the usage bucket date
openai.base.usage_object_type Type of the usage record keyword
openai.base.user_id Identifier of the user keyword

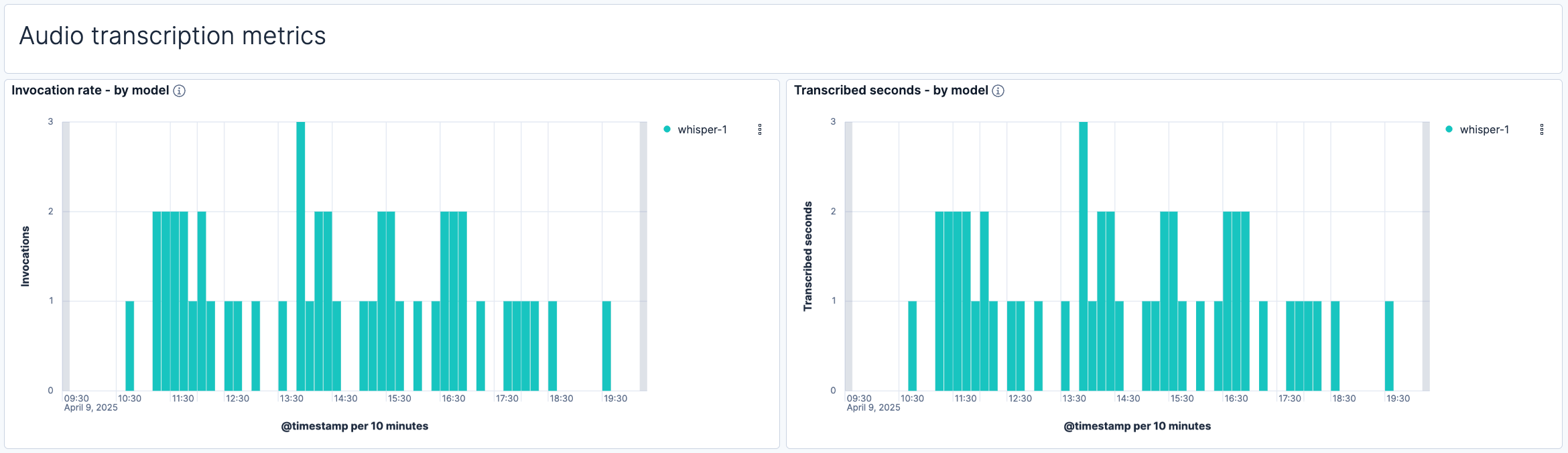

The audio_transcriptions data stream captures audio transcriptions usage metrics.

Example
{
    "openai": {
        "audio_transcriptions": {
            "seconds": 2
        },
        "base": {
            "start_time": "2024-11-04T00:00:00.000Z",
            "num_model_requests": 1,
            "project_id": "proj_dummy",
            "user_id": "user-dummy",
            "end_time": "2024-11-05T00:00:00.000Z",
            "model": "whisper-1",
            "api_key_id": "key_dummy",
            "usage_object_type": "organization.usage.audio_transcriptions.result"
        }
    },
    "@timestamp": "2024-11-04T00:00:00.000Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "logs",
        "dataset": "openai.audio_transcriptions"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T21:56:24Z",
        "created": "2025-01-28T21:56:24.113Z",
        "kind": "metric",
        "dataset": "openai.audio_transcriptions"
    },
    "tags": [
        "forwarded",
        "openai-audio-transcriptions"
    ]
}
Exported fields
Field Description Type Unit
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
openai.audio_transcriptions.seconds Number of seconds processed long s
openai.base.api_key_id Identifier for the API key used keyword
openai.base.end_time End timestamp of the usage bucket date
openai.base.model Name of the OpenAI model used keyword
openai.base.num_model_requests Number of requests made to the model long
openai.base.project_id Identifier of the project keyword
openai.base.start_time Start timestamp of the usage bucket date
openai.base.usage_object_type Type of the usage record keyword
openai.base.user_id Identifier of the user keyword

The code_interpreter_sessions data stream captures code interpreter sessions usage metrics.

Example
{
    "openai": {
        "code_interpreter_sessions": {
            "sessions": 16
        },
        "base": {
            "start_time": "2024-09-04T00:00:00.000Z",
            "project_id": "",
            "end_time": "2024-09-05T00:00:00.000Z",
            "usage_object_type": "organization.usage.code_interpreter_sessions.<dummy>"
        }
    },
    "@timestamp": "2024-09-04T00:00:00.000Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "logs",
        "dataset": "openai.code_interpreter_sessions"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T21:56:19Z",
        "created": "2025-01-28T21:56:17.099Z",
        "kind": "metric",
        "dataset": "openai.code_interpreter_sessions"
    },
    "tags": [
        "forwarded",
        "openai-code-interpreter-sessions"
    ]
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
openai.base.end_time End timestamp of the usage bucket date
openai.base.project_id Identifier of the project keyword
openai.base.start_time Start timestamp of the usage bucket date
openai.base.usage_object_type Type of the usage record keyword
openai.code_interpreter_sessions.sessions Number of code interpreter sessions long

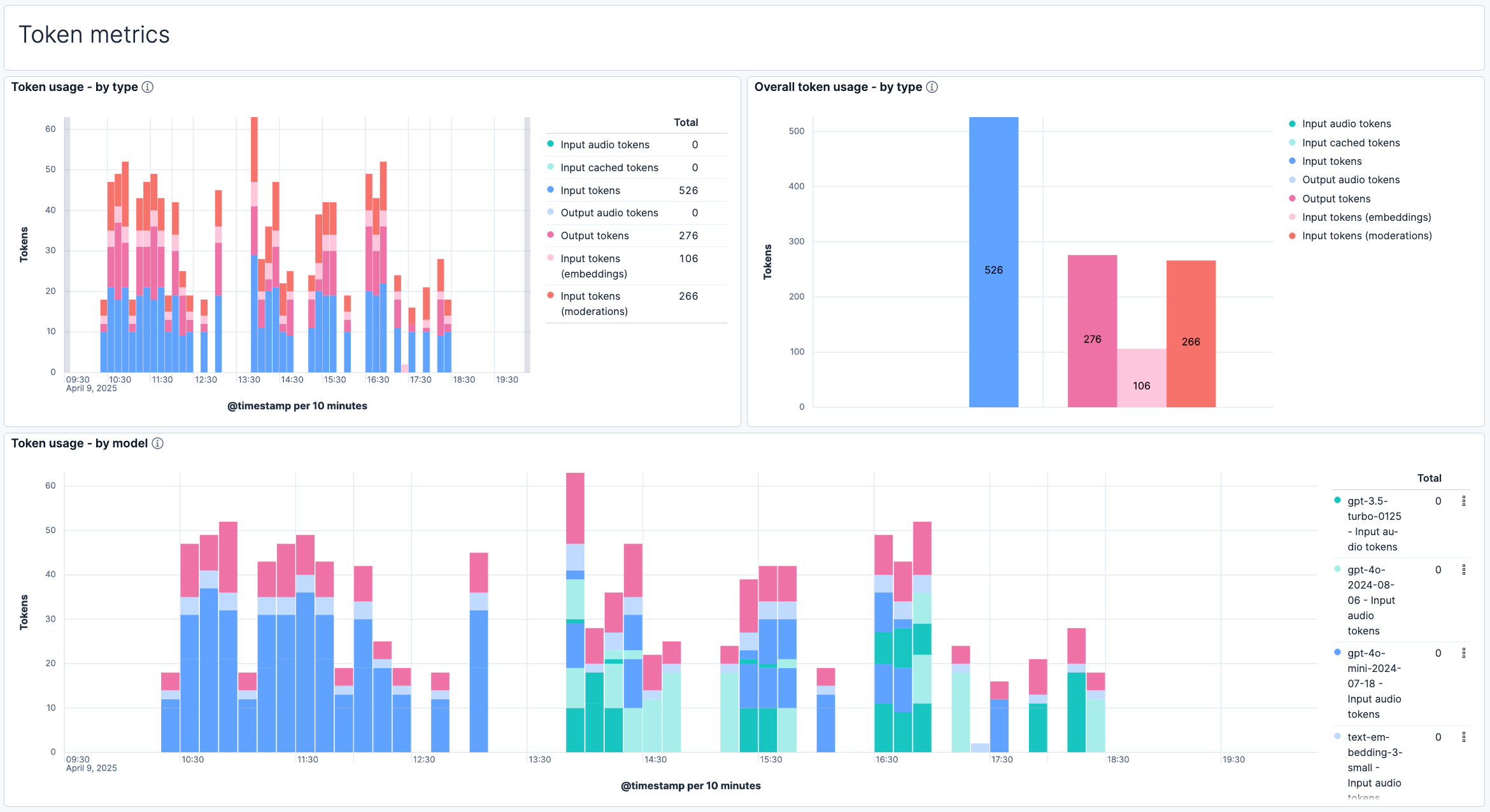

The completions data stream captures completions usage metrics.

Example
{
    "openai": {
        "completions": {
            "output_audio_tokens": 0,
            "batch": false,
            "input_audio_tokens": 0,
            "input_cached_tokens": 0,
            "input_tokens": 22,
            "output_tokens": 149
        },
        "base": {
            "start_time": "2025-01-27T00:00:00.000Z",
            "num_model_requests": 1,
            "project_id": "proj_dummy",
            "user_id": "user-dummy",
            "end_time": "2025-01-28T00:00:00.000Z",
            "model": "gpt-4o-mini-2024-07-18",
            "api_key_id": "key_dummy",
            "usage_object_type": "organization.usage.completions.result"
        }
    },
    "@timestamp": "2025-01-27T00:00:00.000Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "logs",
        "dataset": "openai.completions"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T21:56:30Z",
        "created": "2025-01-28T21:56:29.346Z",
        "kind": "metric",
        "dataset": "openai.completions"
    },
    "tags": [
        "forwarded",
        "openai-completions"
    ]
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
openai.base.api_key_id Identifier for the API key used keyword
openai.base.end_time End timestamp of the usage bucket date
openai.base.model Name of the OpenAI model used keyword
openai.base.num_model_requests Number of requests made to the model long
openai.base.project_id Identifier of the project keyword
openai.base.start_time Start timestamp of the usage bucket date
openai.base.usage_object_type Type of the usage record keyword
openai.base.user_id Identifier of the user keyword
openai.completions.batch Whether the request was processed as a batch boolean
openai.completions.input_audio_tokens Number of audio input tokens used, including cached tokens long
openai.completions.input_cached_tokens Number of text input tokens that has been cached from previous requests. For customers subscribe to scale tier, this includes scale tier tokens long
openai.completions.input_tokens Number of text input tokens used, including cached tokens. For customers subscribe to scale tier, this includes scale tier tokens long
openai.completions.output_audio_tokens Number of audio output tokens used long
openai.completions.output_tokens Number of text output tokens used. For customers subscribe to scale tier, this includes scale tier tokens long

The embeddings data stream captures embeddings usage metrics.

Example
{
    "openai": {
        "embeddings": {
            "input_tokens": 16
        },
        "base": {
            "start_time": "2024-09-04T00:00:00.000Z",
            "num_model_requests": 2,
            "project_id": "",
            "user_id": "user-dummy",
            "end_time": "2024-09-05T00:00:00.000Z",
            "model": "text-embedding-ada-002-v2",
            "api_key_id": "key_dummy",
            "usage_object_type": "organization.usage.embeddings.result"
        }
    },
    "@timestamp": "2024-09-04T00:00:00.000Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "logs",
        "dataset": "openai.embeddings"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T21:56:19Z",
        "created": "2025-01-28T21:56:17.149Z",
        "kind": "metric",
        "dataset": "openai.embeddings"
    },
    "tags": [
        "forwarded",
        "openai-embeddings"
    ]
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
openai.base.api_key_id Identifier for the API key used keyword
openai.base.end_time End timestamp of the usage bucket date
openai.base.model Name of the OpenAI model used keyword
openai.base.num_model_requests Number of requests made to the model long
openai.base.project_id Identifier of the project keyword
openai.base.start_time Start timestamp of the usage bucket date
openai.base.usage_object_type Type of the usage record keyword
openai.base.user_id Identifier of the user keyword
openai.embeddings.input_tokens Number of input tokens used. long

The images data stream captures images usage metrics.

Example
{
    "openai": {
        "images": {
            "images": 1,
            "size": "1024x1024",
            "source": "image.generation"
        },
        "base": {
            "start_time": "2024-09-04T00:00:00.000Z",
            "num_model_requests": 1,
            "project_id": "",
            "user_id": "user-dummy",
            "end_time": "2024-09-05T00:00:00.000Z",
            "model": "dall-e-3",
            "api_key_id": "key_dummy",
            "usage_object_type": "organization.usage.images.result"
        }
    },
    "@timestamp": "2024-09-04T00:00:00.000Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "logs",
        "dataset": "openai.images"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T21:56:19Z",
        "created": "2025-01-28T21:56:17.758Z",
        "kind": "metric",
        "dataset": "openai.images"
    },
    "tags": [
        "forwarded",
        "openai-images"
    ]
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
openai.base.api_key_id Identifier for the API key used keyword
openai.base.end_time End timestamp of the usage bucket date
openai.base.model Name of the OpenAI model used keyword
openai.base.num_model_requests Number of requests made to the model long
openai.base.project_id Identifier of the project keyword
openai.base.start_time Start timestamp of the usage bucket date
openai.base.usage_object_type Type of the usage record keyword
openai.base.user_id Identifier of the user keyword
openai.images.images Number of images processed long
openai.images.size Image size (dimension of the generated image) keyword
openai.images.source Source of the grouped usage result, possible values are image.generation, image.edit, image.variation keyword

The moderations data stream captures moderations usage metrics.

Example
{
    "openai": {
        "moderations": {
            "input_tokens": 16
        },
        "base": {
            "start_time": "2024-09-04T00:00:00.000Z",
            "num_model_requests": 2,
            "project_id": "",
            "user_id": "user-dummy",
            "end_time": "2024-09-05T00:00:00.000Z",
            "model": "text-moderation:2023-10-25",
            "api_key_id": "key_dummy",
            "usage_object_type": "organization.usage.moderations.result"
        }
    },
    "@timestamp": "2024-09-04T00:00:00.000Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "logs",
        "dataset": "openai.moderations"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T21:56:19Z",
        "created": "2025-01-28T21:56:17.099Z",
        "kind": "metric",
        "dataset": "openai.moderations"
    },
    "tags": [
        "forwarded",
        "openai-moderations"
    ]
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
openai.base.api_key_id Identifier for the API key used keyword
openai.base.end_time End timestamp of the usage bucket date
openai.base.model Name of the OpenAI model used keyword
openai.base.num_model_requests Number of requests made to the model long
openai.base.project_id Identifier of the project keyword
openai.base.start_time Start timestamp of the usage bucket date
openai.base.usage_object_type Type of the usage record keyword
openai.base.user_id Identifier of the user keyword
openai.moderations.input_tokens Number of input tokens used. long

The vector_stores data stream captures vector stores usage metrics.

Example
{
    "openai": {
        "vector_stores": {
            "usage_bytes": 16
        },
        "base": {
            "start_time": "2024-09-04T00:00:00.000Z",
            "project_id": "",
            "end_time": "2024-09-05T00:00:00.000Z",
            "usage_object_type": "organization.usage.vector_stores.<dummy>"
        }
    },
    "@timestamp": "2024-09-04T00:00:00.000Z",
    "ecs": {
        "version": "8.16.0"
    },
    "data_stream": {
        "namespace": "default",
        "type": "logs",
        "dataset": "openai.vector_stores"
    },
    "event": {
        "agent_id_status": "verified",
        "ingested": "2025-01-28T21:56:19Z",
        "created": "2025-01-28T21:56:17.099Z",
        "kind": "metric",
        "dataset": "openai.vector_stores"
    },
    "tags": [
        "forwarded",
        "openai-vector-stores"
    ]
}
Exported fields
Field Description Type Unit
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
openai.base.end_time End timestamp of the usage bucket date
openai.base.project_id Identifier of the project keyword
openai.base.start_time Start timestamp of the usage bucket date
openai.base.usage_object_type Type of the usage record keyword
openai.vector_stores.usage_bytes Vector stores usage in bytes long byte
Changelog
Version Details Kibana version(s)
1.1.0 Enhancement (View pull request)
Update OpenAI logo and the documentation.		 8.16.3 or higher
9.0.0 or higher
1.0.0 Enhancement (View pull request)
Release OpenAI integration as Generally Available (GA).		 8.16.3 or higher
9.0.0 or higher
0.3.0 Enhancement (View pull request)
Update default values and improve documentation and field descriptions.		 —
0.2.0 Enhancement (View pull request)
Add support for Kibana 9.0.0.		 —
0.1.0 Enhancement (View pull request)
Initial draft of the OpenAI integration.		 —
