Downsampling concepts

This page explains core downsampling concepts.

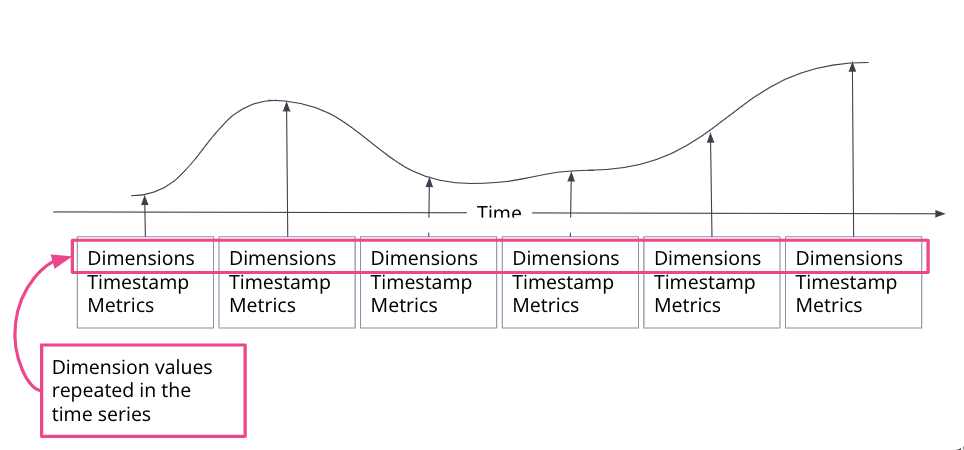

A time series is a sequence of observations taken over time for a specific entity. The observed samples can be represented as a continuous function, where the time series dimensions remain constant and the time series metrics change over time.

×

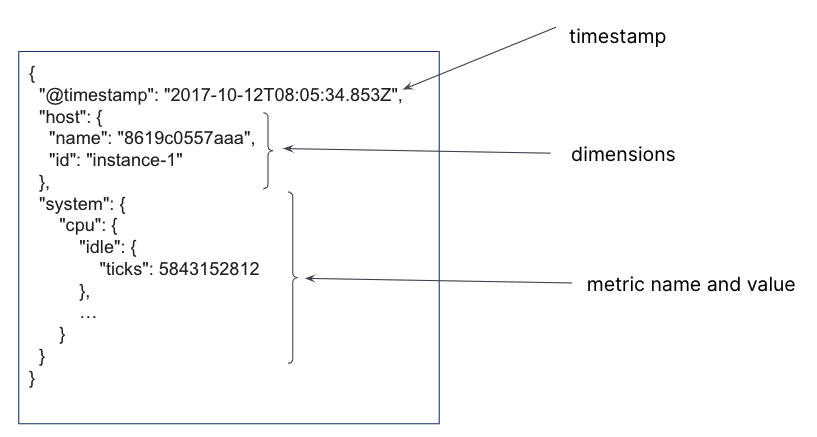

In a time series data stream, a single document is created for each timestamp. The document contains the immutable time series dimensions, plus metric names and values. Several time series dimensions and metrics can be stored for a single timestamp.

×

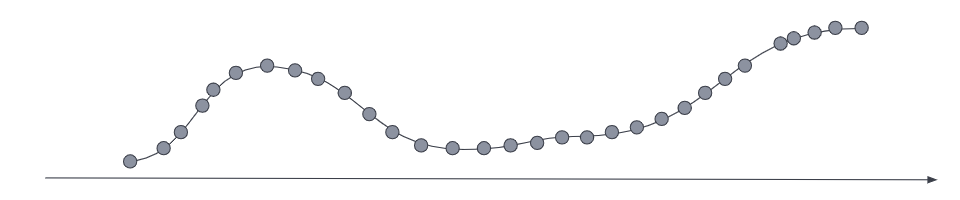

For the most current data, the metrics series typically has a low sampling time interval to optimize for queries that require a high data resolution.

×

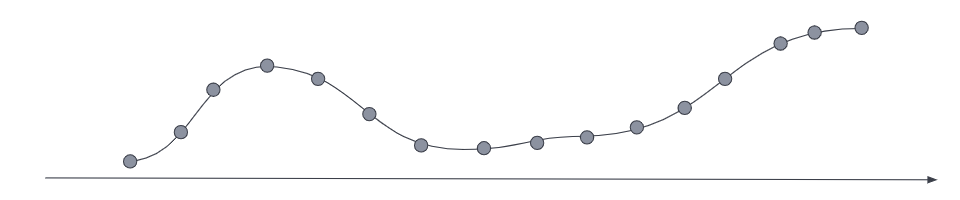

Downsampling reduces the footprint of older, less frequently accessed data by replacing the original time series with a data stream of a higher sampling interval, plus statistical representations of the data. For example, if the original metrics samples were taken every 10 seconds, you might choose to reduce the sample granularity to hourly as the data ages. Or you might choose to reduce the granularity of cold archival data to monthly or less.

×

Downsampling is applied to the individual backing indices of the TSDS. The downsampling operation traverses the source time series index and performs the following steps:

1. Creates a new document for each group of documents with matching _tsid values (time series dimension fields), grouped into buckets that correspond to timestamps in a specific interval.

   For example, a TSDS index that contains metrics sampled every 10 seconds can be downsampled to an hourly index. All documents within a given hour interval are summarized and stored as a single document in the downsampled index.

2. For each new document, copies all time series dimensions from the source index to the target index. Dimensions in a TSDS are constant, so this step happens only once per bucket.

3. For each time series metric field, it computes the downsampled values based on the downsampling method.

4. For all other fields, copies the most recent value to the target index.

5. Replaces the original index with the downsampled index, then deletes the original index.

The new, downsampled index is created on the data tier of the original index and inherits the original settings, like number of shards and replicas.

Downsampling supports two methods for reducing multiple values in the same bucket to a single representative result:

• last_value: Stores only the most recent value for each metric in the bucket. This method reduces the storage footprint the most, but it also reduces data accuracy. It applies to all metric types.

• aggregate Stores statistical summaries for the values in each bucket. This method preserves more information than last_value, but it requires more storage. It applies to each metric type as follows:

  • gauge fields:
    • Stores min, max, sum, and value_count as aggregate_metric_double.
  • counter fields:
    • Stores the first value, and stores up to two data points if a counter reset is detected . The field type is preserved.
    • In previous versions, only the last value is stored.
  • histogram fields
    • Merges individual histograms into a single histogram, preserving the field type. Both the histogram and the exponential_histogram) are supported; the histogram field type uses the T-Digest algorithm for merging.

The target downsampled index uses the same field mappings as the source index, with one exception: time_series_metric: gauge fields are mapped to aggregate_metric_double.

An aggregate_metric_double can be used in max, min, sum, value_count, and avg aggregations without losing accuracy.

In ES|QL, a downsampled gauge stored as aggregate_metric_double can still be used as a double in other operations, but with reduced accuracy. In this case, the average value for each downsample interval is used as the single representative value.
