Central configuration for Elastic OTel SDKs

Manage Elastic OTel SDKs through the APM Agent Central Configuration feature in the Applications UI. Changes are automatically propagated to the deployed Elastic OTel SDKs. Refer to APM Agent Central Configuration for more information.

This feature implements the Open Agent Management Protocol (OpAMP). Refer to Open Agent Management Protocol for more information.

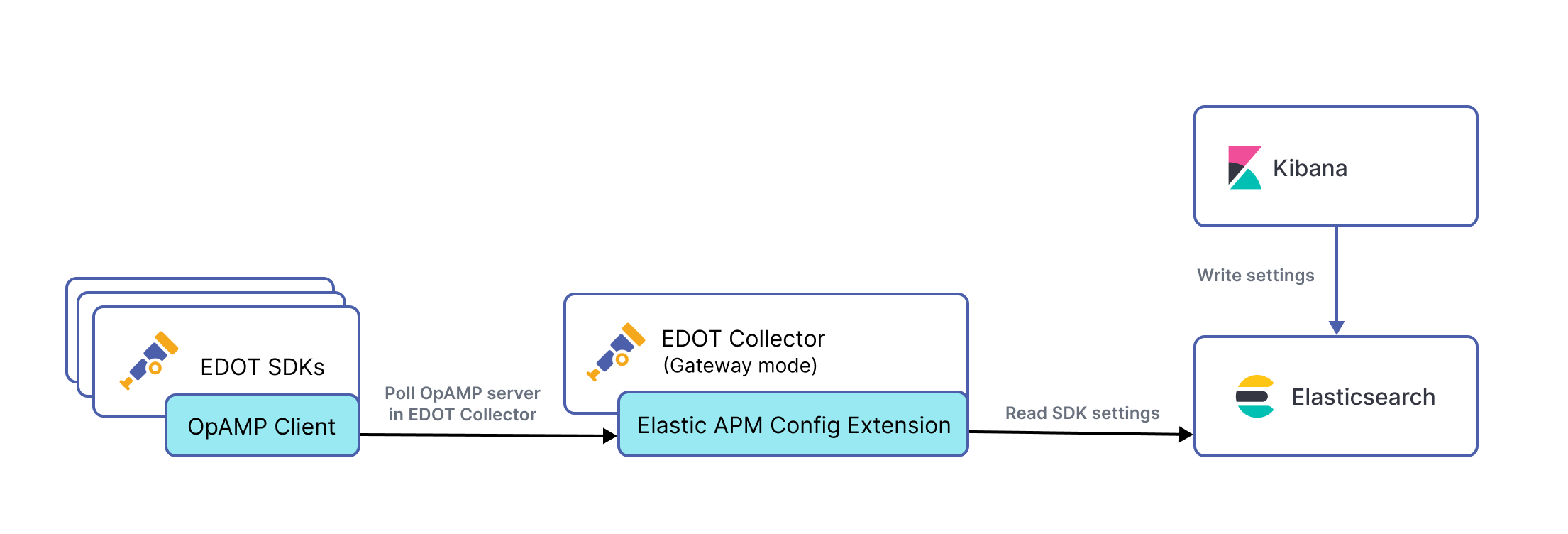

The central configuration architecture lets you manage fleets of Elastic OTel SDKs remotely. The data flow, illustrated in this diagram, shows how configuration changes propagate from a central management point to each individual agent.

Diagram of Central config architecture

The process starts within Kibana, where administrators create and manage settings for the Elastic OTel SDKs. Once defined, settings are written to and persisted in Elasticsearch, which acts as the single source of truth. The Elastic Agent, when configured in Gateway mode, includes the Elastic APM Config Extension, which reads the SDK settings from Elasticsearch, making them available for distribution.

Each Elastic OTel SDK contains an embedded OpAMP Client. Following the Open Agent Management Protocol (OpAMP), these clients periodically poll the OpAMP server, bundled with the Collector's APM Config Extension, over HTTP. This polling action allows the SDKs to retrieve the latest configuration updates, enabling dynamic and centralized control over their behavior without requiring manual intervention or redeployment.

To use APM Agent Central Configuration for Elastic OTel SDKs, you need:

  • An Elastic self-managed or Elastic Cloud deployment, version 9.1 or later.
  • A standalone Elastic Agent, in either Agent or Collector mode.
  • Elastic OTel SDKs instrumenting your application.

The following versions of Elastic OpenTelemetry and Elastic Stack support central configuration:

Component Minimum version
Kibana 9.1 or later
Elastic Agent 8.19, 9.1 or later
Elastic OTel Android 1.2.0 or later
Elastic OTel iOS 1.4.0 or later
Elastic OTel Java 1.5.0 or later
Elastic OTel .NET 1.4.0 or later
Elastic OTel Node.js 1.2.0 or later
Elastic OTel PHP 1.1.1 or later
Elastic OTel Python 1.4.0 or later
Note

Serverless deployments are not supported.

To activate APM Agent Central Configuration for Elastic OTel SDKs, follow these steps.

  1. Retrieve your credentials

    You need a valid Elasticsearch API key to authenticate to the Elasticsearch endpoint.

  2. Create an Elasticsearch API key for central configuration

    Create an API key with the config_agent:read privilege. Elastic OTel SDKs use this API key, and the Collector validates it.

    Use the following API request to generate the key:

    POST /_security/api_key
{
  "name": "apmconfig-opamp-test-sdk",
  "metadata": {
    "application": "apm"
  },
  "role_descriptors": {
    "apm": {
      "cluster": [],
      "indices": [],
      "applications": [
        {
          "application": "apm",
          "privileges": [
            "config_agent:read"
          ],
          "resources": [
            "*"
          ]
        }
      ],
      "run_as": [],
      "metadata": {}
    }
  }
}
    Note

    The Elastic Agent doesn't store or embed the Elasticsearch API key.

    Each Elastic OTel SDK must send its own API key in the Authorization header (for example: Authorization: ApiKey <Base64(id:key)>).

    The apikeyauth extension only validates this API key against Elasticsearch, ensuring it includes the config_agent:read privilege with resources: ["*"].

    3. Example JSON payload
    POST /_security/api_key
{
  "name": "apmconfig-opamp-test-sdk",
  "metadata": {
    "application": "apm"
  },
  "role_descriptors": {
    "apm": {
      "cluster": [],
      "indices": [],
      "applications": [
        {
          "application": "apm",
          "privileges": [
            "config_agent:read"
          ],
          "resources": [
            "*"
          ]
        }
      ],
      "run_as": [],
      "metadata": {}
    }
  }
}

  3. Edit the Elastic Agent configuration

    Edit the Elastic Agent configuration to activate the central configuration feature:

    extensions:
  bearertokenauth:
    scheme: "APIKey"
    token: "<ENCODED_ELASTICSEARCH_APIKEY>"

  apmconfig:
    opamp:
      protocols:
        http:
          # Default is localhost:4320
          # To specify a custom endpoint, uncomment the following line
          # and set the endpoint to the custom endpoint
          # endpoint: "<CUSTOM_OPAMP_ENDPOINT>"
    source:
      elasticsearch:
        endpoint: "<ELASTICSEARCH_ENDPOINT>"
        auth:
          authenticator: bearertokenauth

service:
  extensions: [bearertokenauth, apmconfig]
    Note

    For comprehensive authentication configuration options, refer to Authentication methods.

    Restart the Elastic Agent to also restart the Collector and apply the changes.

    Refer to Secure connection if you need to secure the connection between the Elastic Agent and Elastic using TLS or mutual TLS.

  4. Set the environment variables for the SDKs

    Activate the central configuration feature in the SDKs by setting the ELASTIC_OTEL_OPAMP_ENDPOINT environment variable to the URL endpoint of the apmconfig extension that you configured in the previous step. For example:

    export ELASTIC_OTEL_OPAMP_ENDPOINT="http://localhost:4320/v1/opamp"

    If the OpAMP server in the Collector requires authentication, set the ELASTIC_OTEL_OPAMP_HEADERS environment variable.

    export ELASTIC_OTEL_OPAMP_HEADERS="Authorization=ApiKey an_api_key"

    Restart the instrumented application to apply the changes.

    Important

    Support for the ELASTIC_OTEL_OPAMP_HEADERS environment variable depends on each SDK. Refer to the configuration reference of each Elastic OTel SDK for more information.

  5. Check that the Elastic OTel SDK shows up

    Allow time for the Elastic OTel SDK to appear in Kibana under Agent Configuration.

    1. Go to Kibana → Observability → Applications and select a service.
    2. Select Settings and go to Agent Configuration.

    Your application must produce and send telemetry data for the Elastic OTel SDK to appear in Agent Configuration. This is because central configuration requires an application name as the key, which can't be defined until the application name is associated with the Elastic OTel SDK agent after receiving telemetry.

    Note

    Central configuration uses the service.name and deployment.environment.name OpenTelemetry resource attributes to target specific instances with a configuration. If no environment is specified, the central configuration feature will match All as the environment.

For a list of settings that you can configure through APM Agent Central Configuration, refer to the configuration reference of each Elastic OTel SDK:

The Advanced Configuration feature allows you to define custom configuration options as key-value pairs. Settings are passed directly to your Elastic OTel SDK.

Warning

Use this feature with caution. An incorrect or incompatible setting might affect the behavior of the Elastic OTel SDK.

To deactivate central configuration, remove the ELASTIC_OTEL_OPAMP_ENDPOINT environment variable.

Restart the instrumented application to apply the changes.
