Visualize detection alerts

The Alerts page includes a visualization section that helps you spot patterns, identify high-volume rules, and prioritize investigation. Choose from four view types, each designed for different analysis tasks.

Alerts page with visualizations section
View Best for Supports secondary grouping
Summary Quick overview of severity, top rules, and affected hosts/users No
Trend Spotting alert spikes and patterns over time No
Counts Comparing alert volumes across rules, hosts, or other fields Yes
Treemap Identifying the most frequent and critical alert combinations Yes

Use the dropdown menus above the visualization to group alerts by ECS fields:

Menu Purpose
Group by (or Top alerts by) Primary field for grouping alerts
Group by top Secondary field for subdividing groups (available in Counts and Treemap views)

Example: Group by kibana.alert.rule.name, then by host.name to see which rules fired and which hosts triggered each rule.

Note

For groupings with many unique values, only the top 1,000 results are displayed.

Action How to do it
Reset grouping Hover over the visualization, click , then select Reset group by fields
Inspect queries Click and select Inspect
Add to case Click and select Add to case (Trend and Counts views only)
Open in Lens Click and select Open in Lens (Trend and Counts views only)
Collapse visualization Click to show a compact summary instead

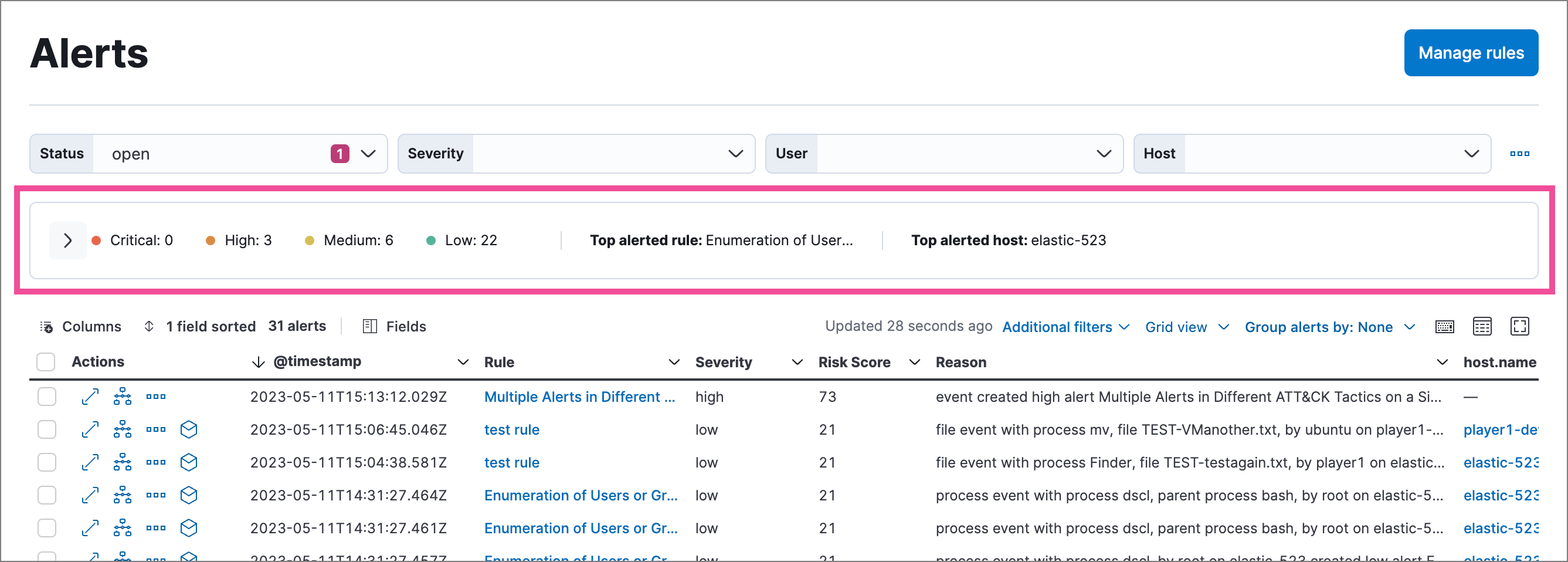

Alerts page with visualizations section collapsed

The default view. Shows alert distribution across three panels:

Panel What it shows
Severity levels Count of alerts by severity (low, medium, high, critical)
Alerts by name Count of alerts by detection rule
Top alerts by Percentage breakdown by host.name, user.name, source.ip, or destination.ip

Click any element (severity level, rule name, or host) to filter the Alerts table to those values.

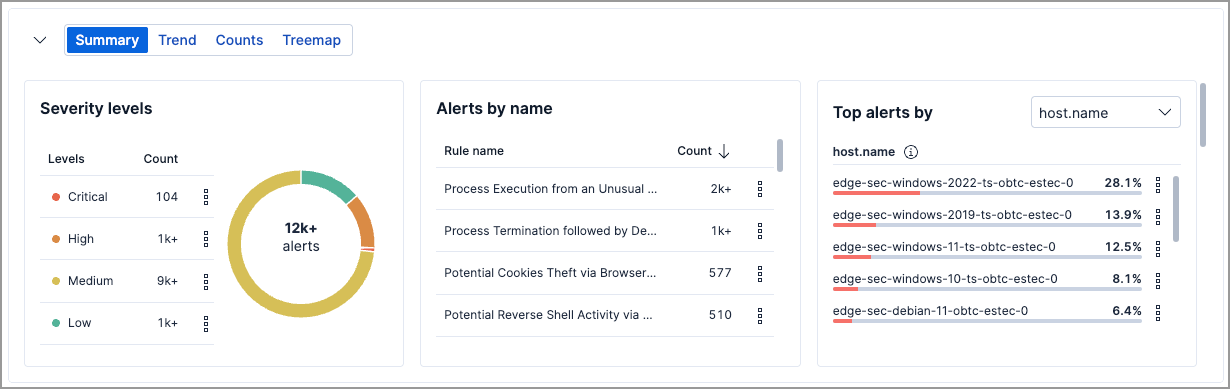

Summary visualization for alerts

Shows alert volume over time as a stacked area chart. Use this to spot spikes, patterns, or changes in alert activity.

Setting Default
Group by kibana.alert.rule.name
Secondary grouping Not available

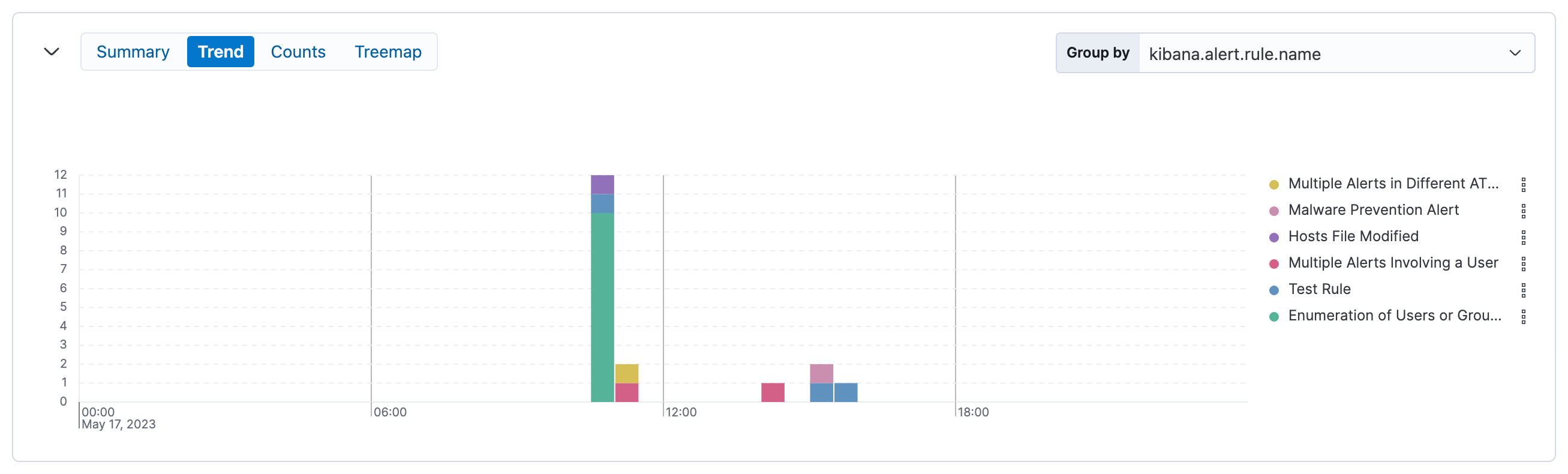

Trend visualization for alerts

Shows alert counts as a table, grouped by one or two fields. Use this to compare alert volumes across rules, hosts, users, or other dimensions.

Setting Default
Group by kibana.alert.rule.name
Group by top host.name

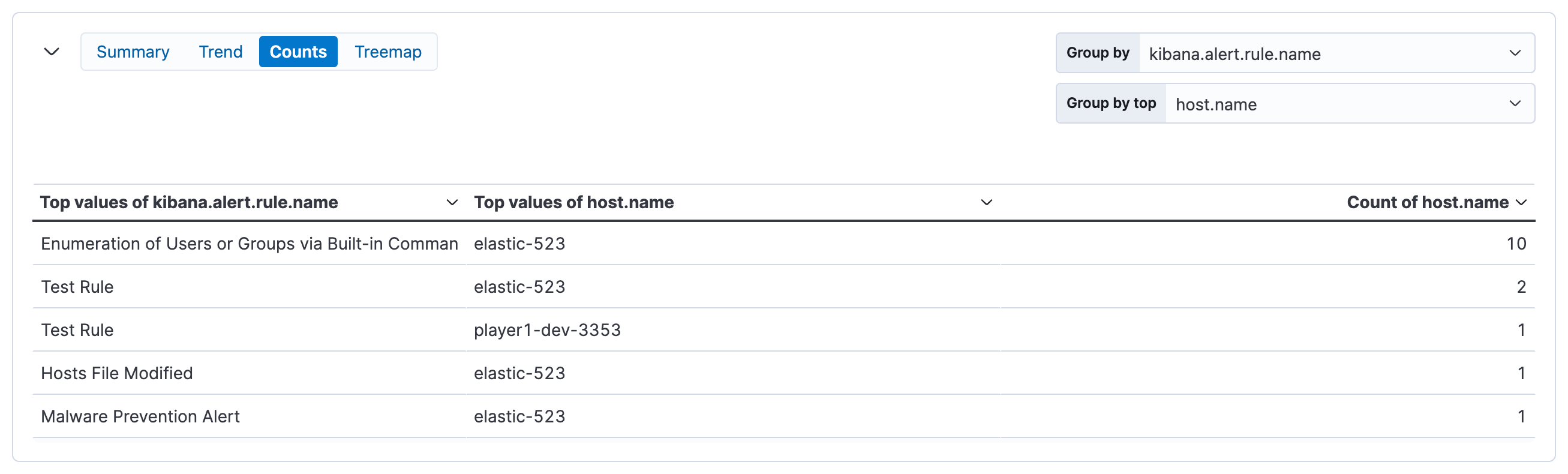

Counts visualization for alerts

Shows alert distribution as nested, proportionally-sized tiles. Larger tiles indicate more alerts; colors indicate risk score.

Setting Default
Group by kibana.alert.rule.name
Group by top host.name

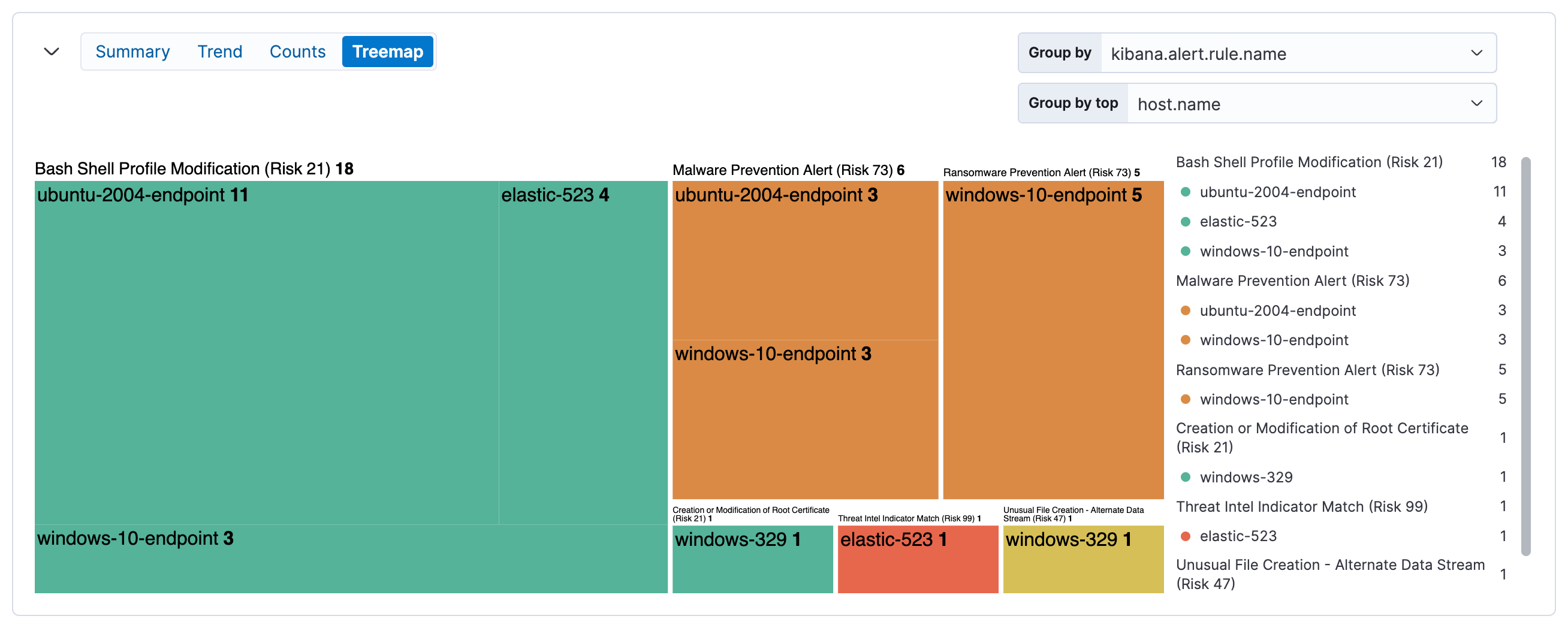

Treemap visualization for alerts
Color Risk score range
Green Low (0–46)
Yellow Medium (47–72)
Orange High (73–98)
Red Critical (99–100)

Click elements to filter the alerts table:

  • Click a group label (above a section) to filter to that group
  • Click an individual tile to filter to that specific combination

Filters appear below the KQL search bar, where you can edit or remove them.

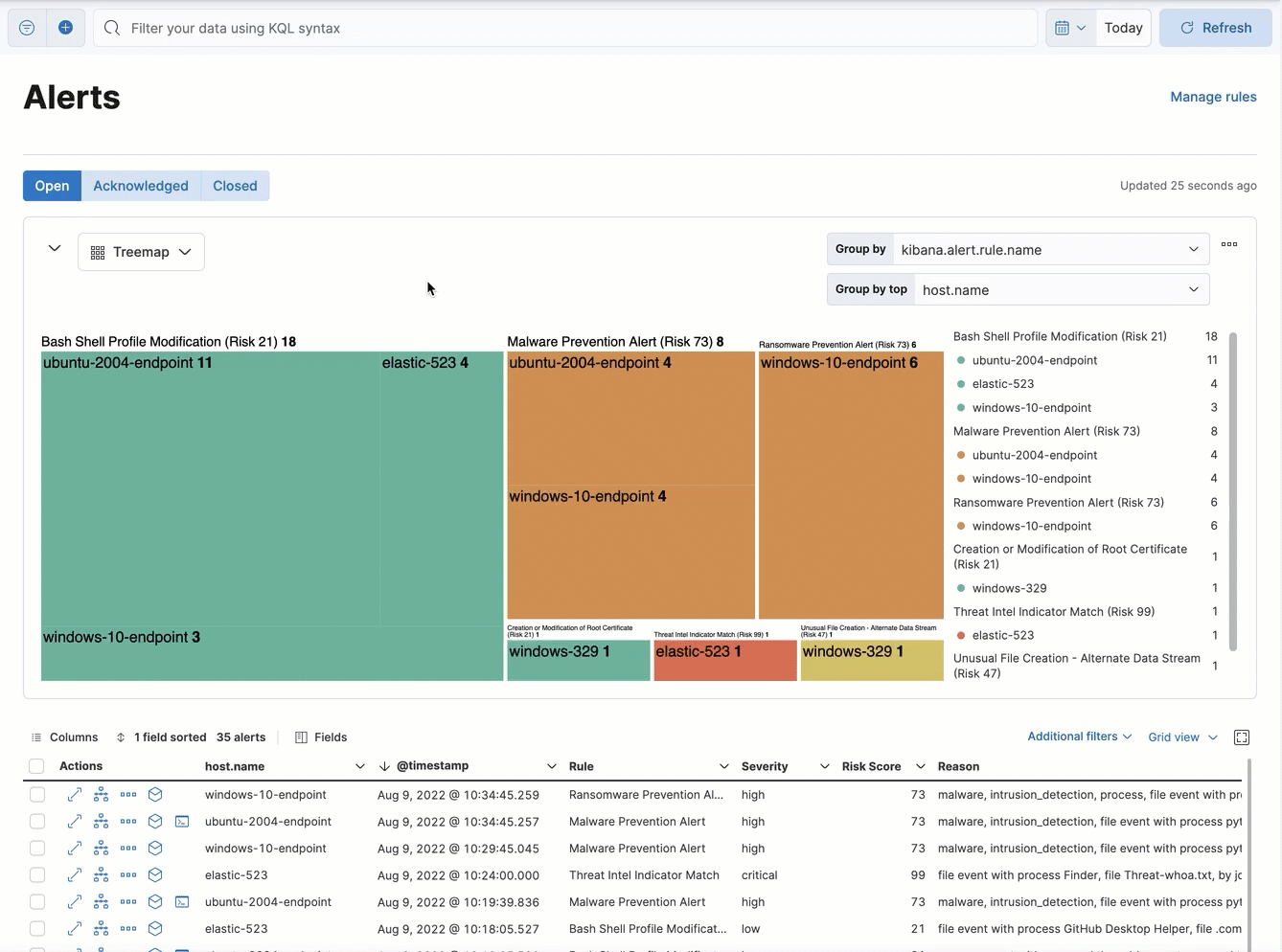

Animation of clicking the treemap
Tip

Some tiles may be small depending on alert volume. Hover over tiles to see details in a tooltip.
